'Press-It' Precision Arbor/Punch Press
Press-It...A Precision Arbor Press for Delicate Work

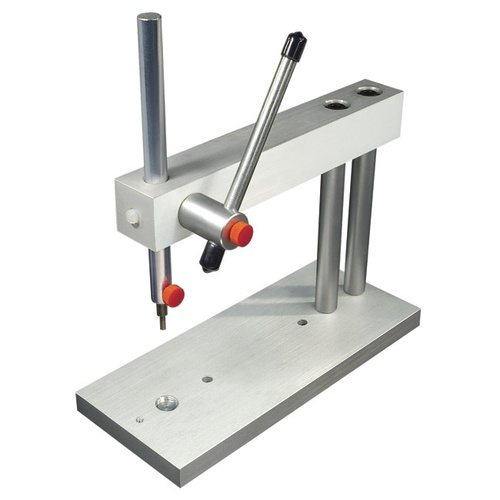

Press-It is a sensitive arbor/punch press that is small enough to give you the delicate touch needed for working with fine model, instrument and clock parts, yet sturdy enough to apply 115kgs of force. Use for press-fitting small parts together and for removing gears and wheels from axles. Can also be used as a hole punch and nibbler when used with optional punch tooling (sold separately). Features a reversible 9.5mm ram with a 4.76mm counterbore on one end to accept interchangeable tooling. Package includes completely assembled press with 2.4mm press tip, die bore plug, ram thumbscrew, adjustable nylon gib and instructions.
With Drill and Tap Holder can be converted into a drilling/tapping fixture
Constructed of steel and aluminum alloy. Base is 178mm x 75mm Throat depth is 114mm. High quality
ALTERNATES / ACCESSORIES / OPTIONS
V Plate for Press-It Precision Arbor/Punch Press
9-piece Hole Punch Set for Press-It Precision Arbor/Punch Press
9-piece Tooling Set for Press-It Precision Arbor/Punch Press
(83539)
| SKU | 83539 |
| Brand | HTA |
| Shipping Weight | 0.9700kg |
| Shipping Width | 0.260m |
| Shipping Height | 0.260m |
| Shipping Length | 0.050m |
