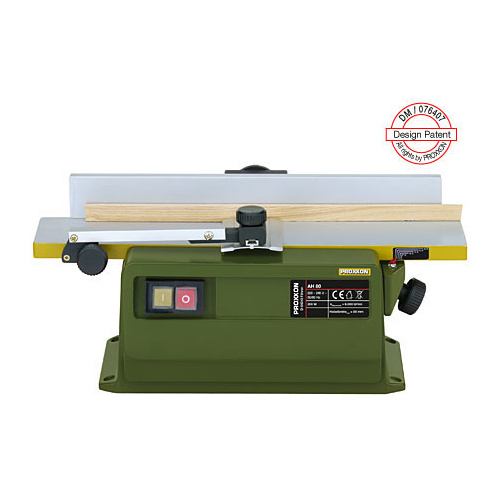

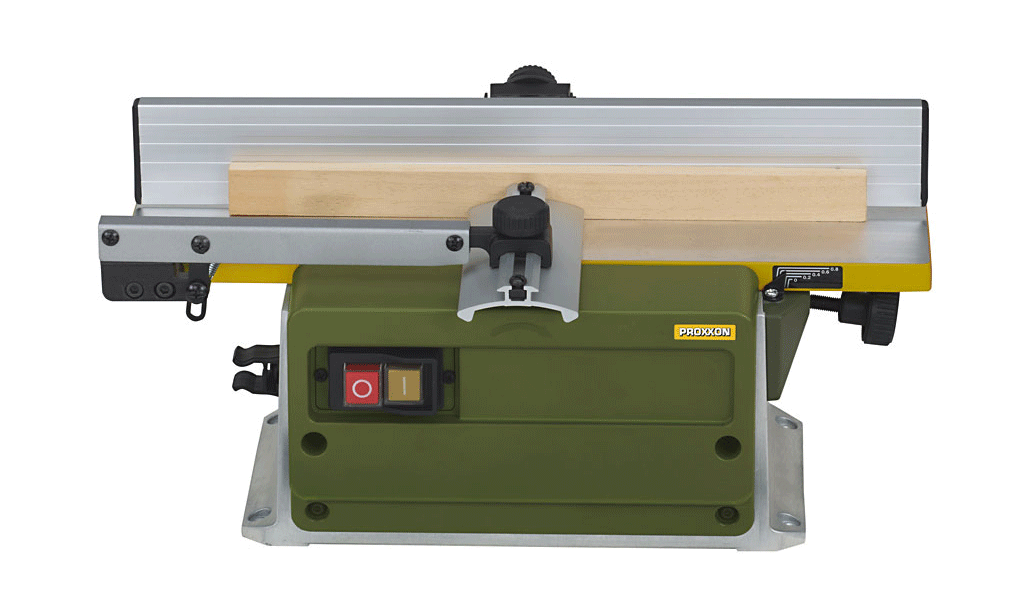

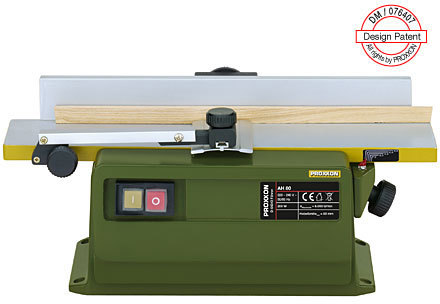

SURFACE PLANER (AH-80)

This planer's structure is entirely made from die-cast aluminium, CNC machined for ideal fits. This concept is essential for vibration-free, clean planing of softwoods and hardwoods. Suited to boxmakers, toymakers, dollshouse makers and miniature builders working with wood.

At the heart of the planer is a ball-bearing supported planer block with two replaceable HSS blades. Low noise level is achieved through a special DC motor and toothed belt drive. The work table is milled to ideal flatness, with the right half finely screw-adjustable. A precisely settable longitudinal stop may be inclined through 45 degrees by a calibrated scale.

The main switch has a proud emergency stop button and re-start protection after power is removed. Connect a vacuum dust extractor (see our 27490 vac) for the best results, clean working and extended motor life.

Included components:

• Pre-fitted with 2 HSS blades
• Tee-handled hex driver
• Safety pushing bar
• Comprehensive manual
• Rubber vacuum connector

Technical specifications:

• 220-240V 50/60Hz AC
• 6000 RPM, 200 watts
• Maximum chip removal (infeed) 0.8mm
• Table size 400mm x 80mm
• Planing width 80mm
• High Speed Steel HSS blades x 2
• Class 1 insulation
• Weight approximately 5.5kg bare, 7.2kg boxed

Extra Blades are Available Separate
