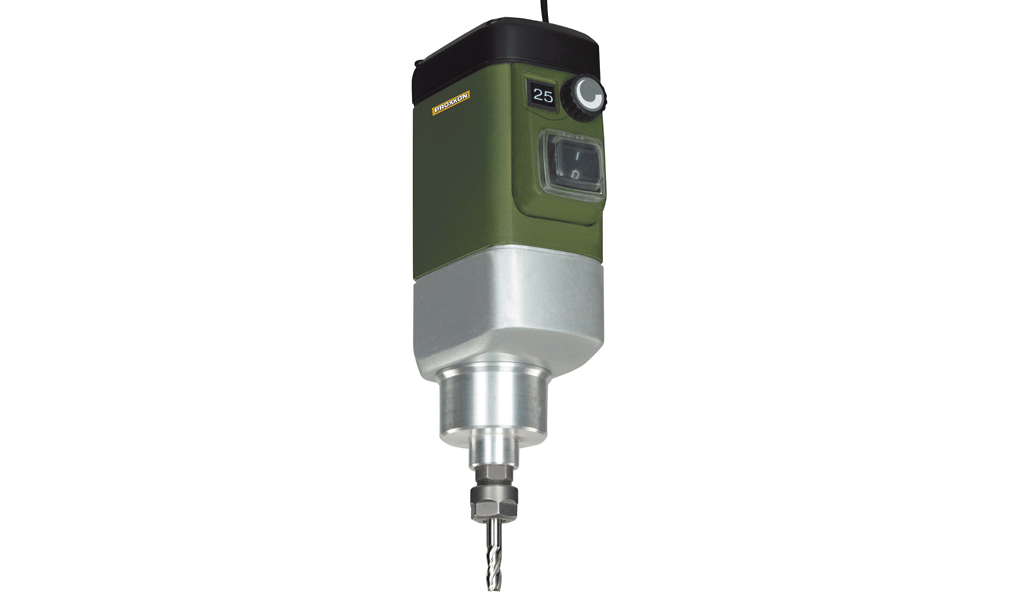

Universal MILLING SYSTEM (UF/E)

High torque even at lower speeds. 230V-operation (no additional controller needed).

Variable speed pre-selection from 10,000 to 30,000rpm and digital speed indication. The sophisticated control via rotor position and speed sensors guarantees high torque also in the lower speed range. Machine base made of die-cast aluminium with 20mm MICROMOT standard collar and 43mm European standard spindle collar. Triple ball bearing spindle for high concentric accuracy and smooth running. The collets depicted are included, but not the milling bit.

Technical data:
230 V. 50/60 Hz. 250 W. 10.000 - 30.000rpm. Weight 1200g. Includes three ER11 collets according to DIN/ISO in sizes 2.5 - 3.2 (1/8") - 6mm.

NO 20 200

Application on mill/drill unit BFB 2000 and compound table KT 150.
