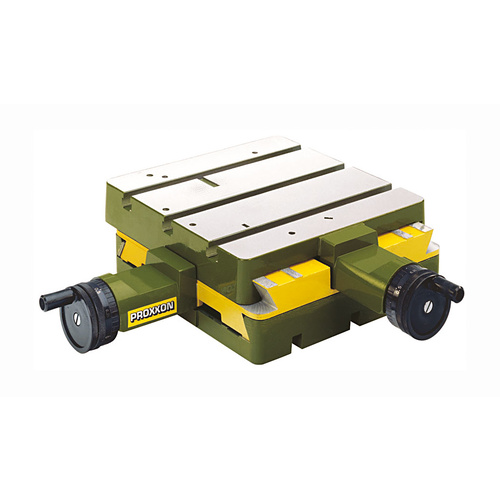

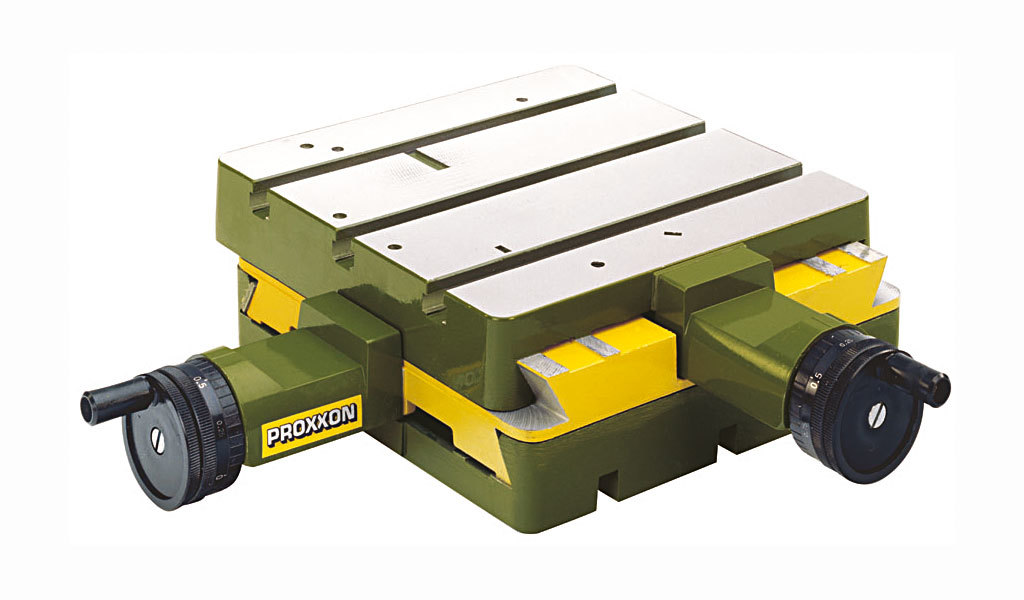

Compound table KT 150 (suit BFB 2000, BV 2000, TBH)

Proxxon KT 150 Aluminium Die-cast Compound Table

With precision milled dovetail slides, this is also suitable for metal work. For routing, milling, slotting of steel, non-ferrous metal, plastic and wood. Each slide provided with locking screws. Dovetail fittings/gib strips adjustable to eliminate play. Feed adjustments by means of 2 hand wheels with adjustable, graduated dials (one graduation = 0.05mm, 1 revolution = 2mm).

Machined table, 3 T-slots for fastening machine vices and clamping kits. Fence supplied with pre-drilled positioning holes, including 45°, fastenings screws and clamp used for routing. Table 200 x 200mm. Max. travel 150 x 150mm. Overall height 75mm. Weight 4.9 kg.

• For routing, milling, slotting of steel, non-ferrous metal, plastic and wood
• Dovetail fittings/gib strips adjustable to eliminate play
• Feed adjustments by means of 2 hand wheels
• Adjustable, graduated dials (1 grad = 0.05mm)
• Machined table with 3 T-slots
• Max. travel 150 x 150mm
• Overall height 75mm. Weight 4.9 kg

T-nuts are need for attaching to the BFB2000 or TBH bench drill.

NO 20 150
