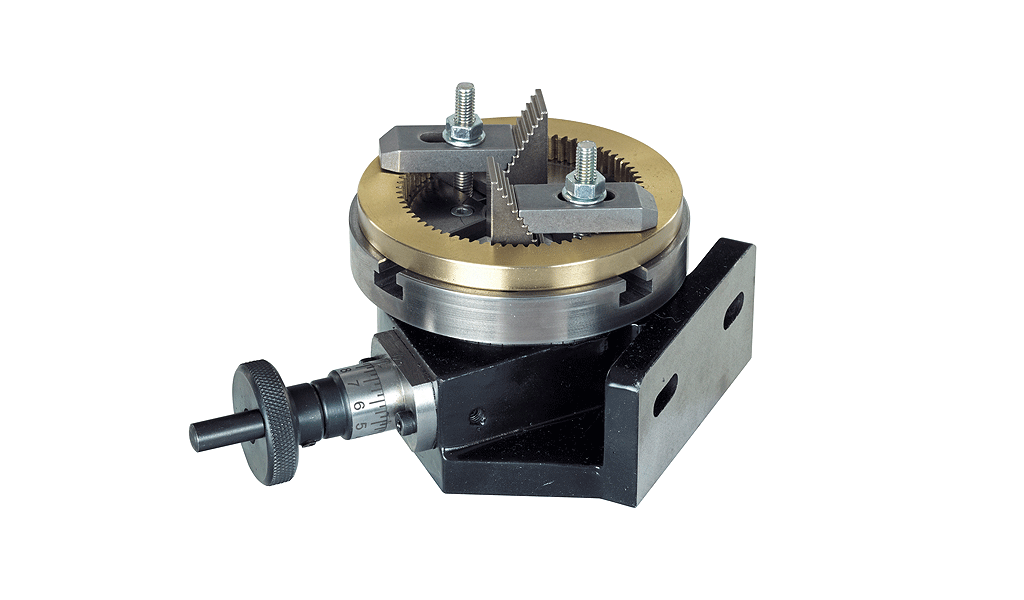

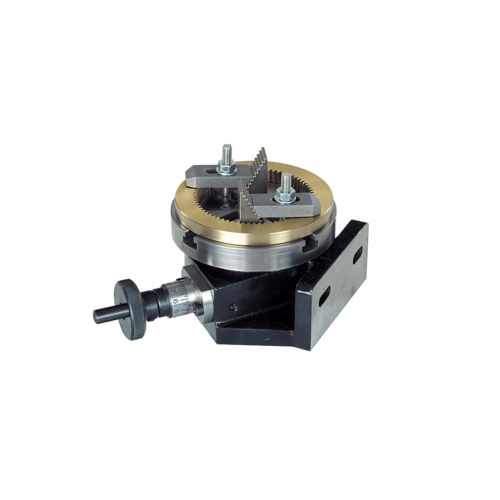

Universal dividing attachment UT 250
Worm drive for divisions through 360°. Feed adjustment by handwheel with graduated, zero-adjustable dial (1 revolution = 10°).
Unit may be fixed horizontally or vertically. For compound tables with distances between T-slots of 45 - 60mm. The flange of the dividing attachment is the same size as that of the main spindle of the PD 250/E lathe, thus 3 jaw chuck (NO 24 034) and 4 jaw chuck (NO 24 036) may be mounted. Incl. faceplate Ø100mm and step clamp set of steel: Two each step blocks and clamps. With matching slot nuts, threaded rods and nuts. Packed in a wooden box.
(For fixation on compound table KT 150 and milling machines FF 230 and FF 500/BL)
- For accurate machining of circular work pieces.
- Used to manufacture sprockets, gears, ratchets, cams, etc.
Note: The work piece pictured here is not included with the item.
NO 24 046
