Proxxon Ultimate TBM220 Bench Drill Kit

$469.00
RRP $515.00
SAVE $46.00 (9%)
In Stock


Calculate Shipping

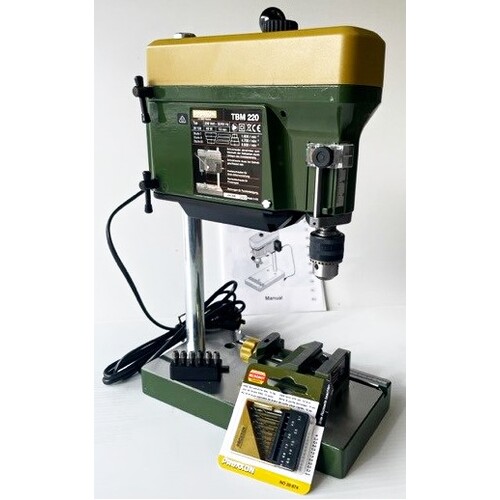

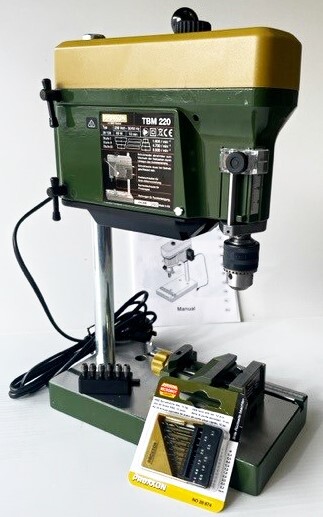

Proxxon Ultimate TBM220 Kit

The Proxxon Ultimate TBM220 kit is everything you need to own your very first drill press. This beautifully presented and well-made drill press can solve all your problems of un-precise and crooked holes in your material.

Proxxon Bench Drill machine TBM220

Features:

  • Machined worktop of high quality, ribbed die-cast aluminium (220 x 120mm).
  • Adjustable fence with scale.
  • Solid, hard-chromed steel column, 240mm high, 20mm in diameter.
  • Super stable die-cast head with VDE approved 220 - 240v motor. Very quiet and of long life expectancy type.
  • power transmission by aluminium pulleys and flat belt.
  • Three spindle speeds (triple torque at low speeds).
  • feed lever with adjustable depth scale.

Technical data: 220-240V, 85W, 50-60Hz, spindle speeds of 1,800, 4700 and 8,500 rpm, extremely high rotational accuracy, 30mm feed, throat depth (column to drill spindle) 140mm, six triple slit precision collects for shaft sizes 1.0 - 1.5 - 2.0 - 2.4 - 3.0 - 3.2mm are included, 3/8" thread, weight 3.3kg. (28128)

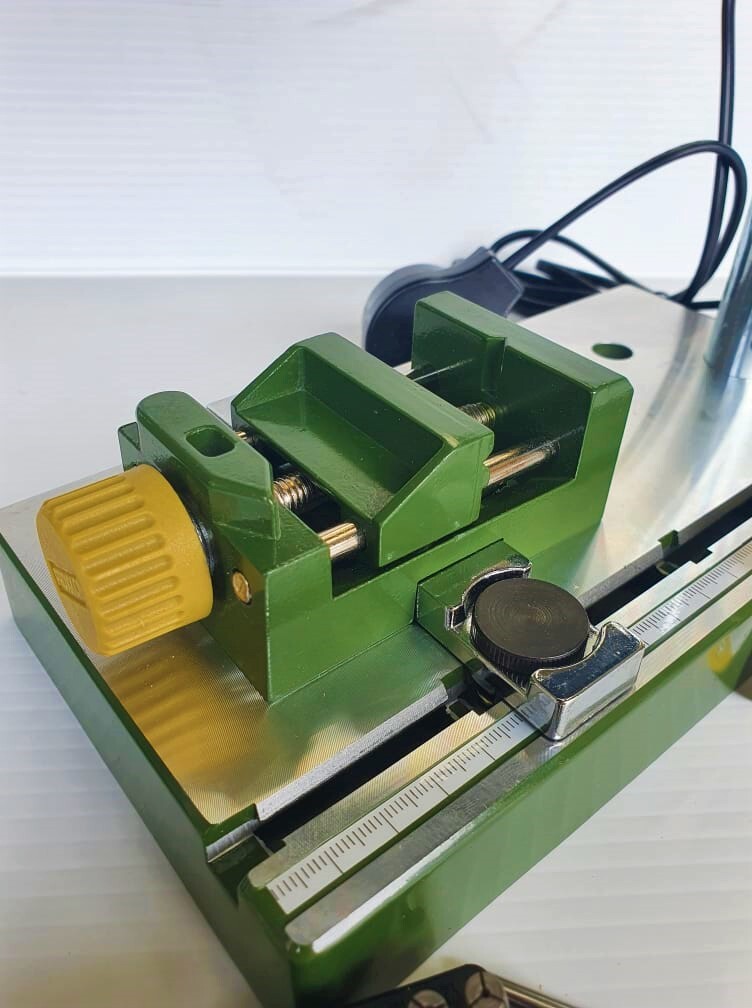

Proxxon Micromot Machine Vise MS4

This vise is made of die-cast zinc and has three machine sides. The jaws are 50mm wide and 10mm high and provide horizontal and vertical V/slots for holding round workpieces. The maximum clamping width is 1 11/32" (34mm). The anvil top with a cast-in hole is optimal for supporting small and fine parts when drilling. (28132)

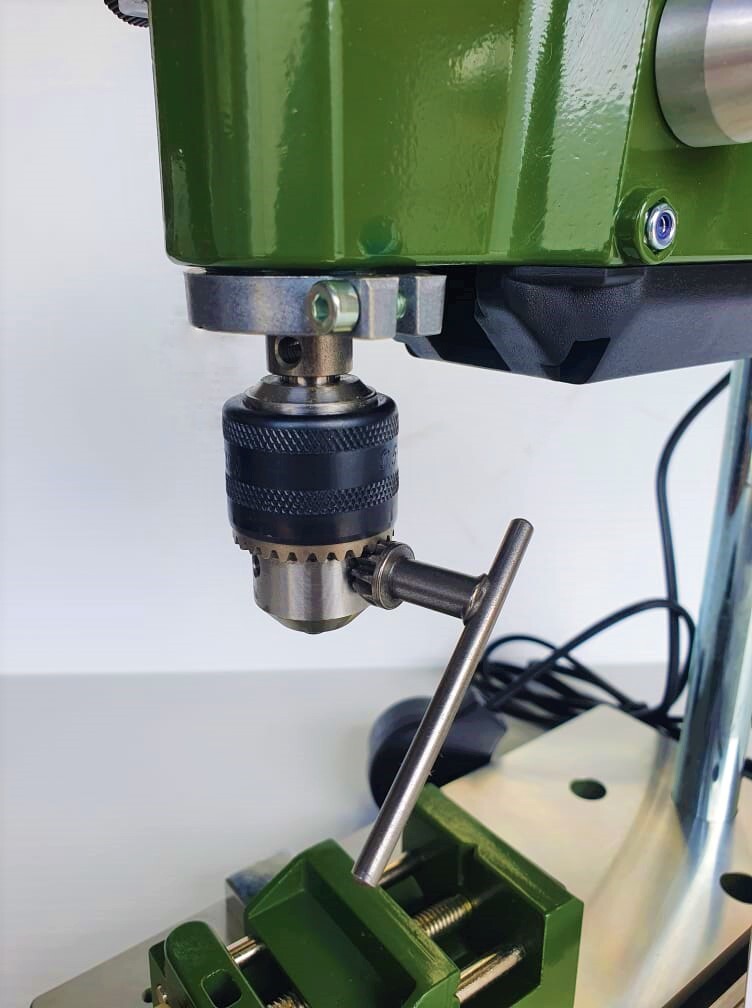

Proxxon Chuck 0.5 - 6.0mm

Rohm chuck for drill bits up to 15/64" (6mm). For drill shank sizes 1/64" to 15/64" (0.5 to 6.0mm) and maximum speeds up to 10,00 rpm this chuck offers industrial quality with extra high-speed accuracy. With 3/8" thread for the TBM220. (28122)

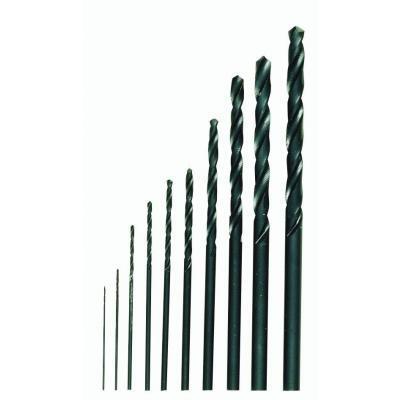

Drill bit set, high-speed steel twist drill set to DIN 338, 10 pcs

This twist drill set is manufactured to the German standard DIN 338, and contains 10 drill bits between 0.3mm and 3.2mm diameter. Suitable for drilling both non-ferrous metals and steels. (28874)




(28128KIT)

SKU 28128KIT
Brand Proxxon
Shipping Weight 3.9000kg
Shipping Width 0.400m
Shipping Height 0.400m
Shipping Length 0.300m
Shipping Cubic 0.048000000m3
