Hot wire cutter THERMOCUT 12/E (12V DC) complete with transformer

Also for cutting free in thick styrofoam or polystyrene panels for Diorama model railway construction.
A 12V DC unit for free modelling in styrofoam, for free cutting in thick styrofoam panels, or for the manufacture of any profile. Excellent for architectural model building, prototype construction, and classical model building without crumbling as when working with a knife and sandpaper.

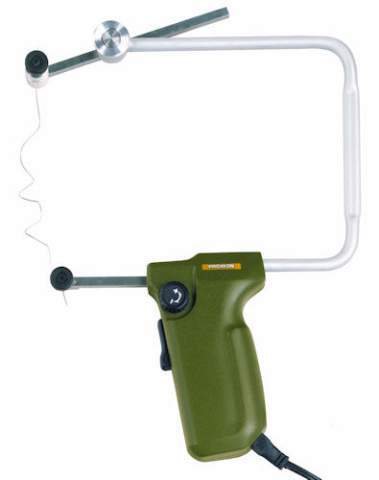

Stable frame with pivoted fixing element and extendable lower wire fixing. This means a maximum extension of 200mm. Work piece height 150mm. Cutting wire temperature infinitely variable. With a little practice, you can achieve optimum cuts depending on the material density and thickness. This is mostly possible at medium temperatures and without too much pressure. Heats up in one second!

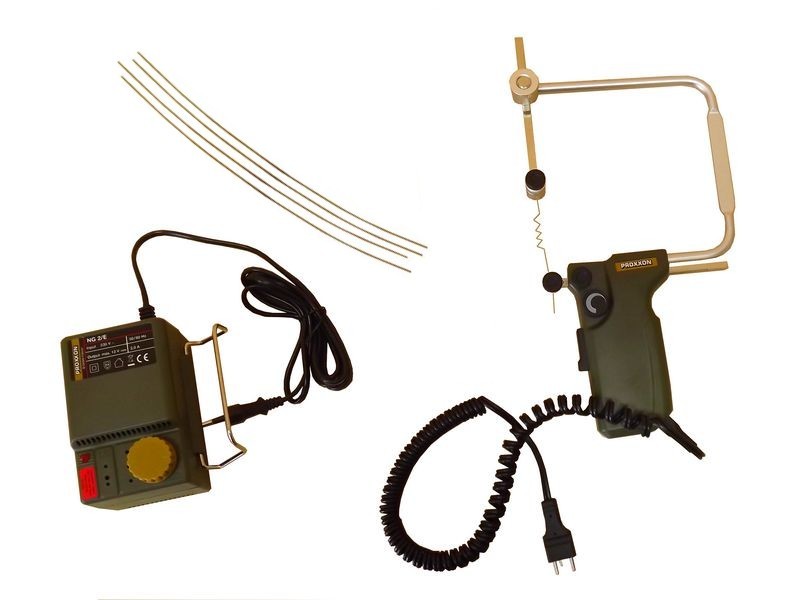

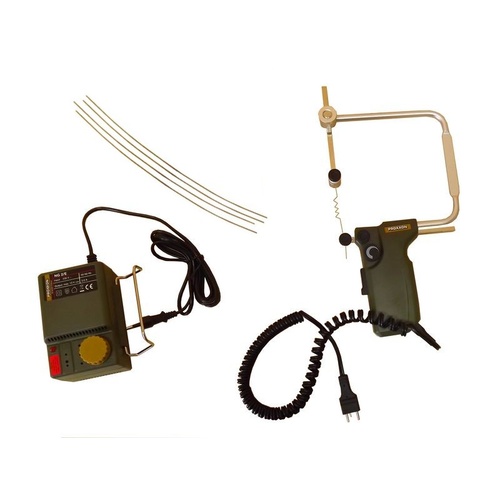

Complete with five deformable cutting wires 200 x 0.85mm, additional wires are available.

Comes with a transformer - MICROMOT Mains Adapter NG 2/S (2 amp) that runs off a 240 volt power supply

Technical specifications:
12V, 60W, 50/60Hz
Temperature from 150 to 350°C

• Cutting wires (200 x 0.85mm) can be shaped for the manufacture of any profile by hand or pliers
• Extendable wire fixing for maximum extension of 200mm
• Pivoted fixing element at top
• Cutting temperature variable
• Polarity-protected system plug for use with MICROMOT transformer.



Product Video available below:

https://www.proxxon.com/en/video/27082.mp4

Product Manual (including spare parts list) available below:

27082 Manual
