This vise has a base made from cast iron, with all bearings and ways CNC machined. The vise is fitted with interchangeable, hardened jaws, each being slotted at the top for gripping flat workpieces.
The feed screw features a rolled thread for easy movement even with tight axial loads.
Suitable for use with drill press TBH, mill/drill unit BFB 2000, or compound table KT 150. Also available: T-nut set for Primus vises, or 100mm width version.

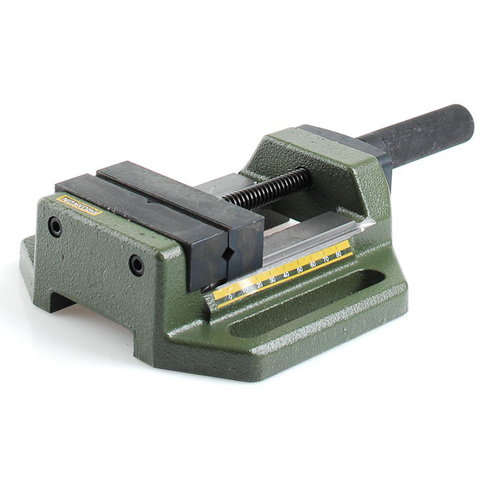

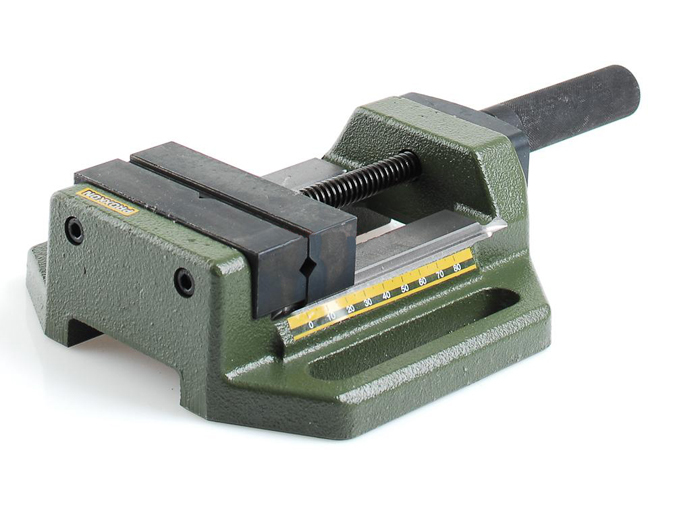

Image is of PRIMUS 100 vise, PRIMUS 75 vise is similar but smaller.
Technical specifications:
- jaw width: 75mm
- maximum jaw opening: 65mm
- fixing slots: 100mm between centres
- slot size: 80mm x 11mm
- mass: 2.5kg
(20392)
SKU | 20392 |
Barcode # | 4006274203921 |
Brand | Proxxon |
Shipping Weight | 2.6000kg |
Shipping Width | 0.490m |
Shipping Height | 0.490m |
Shipping Length | 0.050m |
Shipping Cubic | 0.012005000m3 |
