Proxxon Mill/Drill Stand Super Kit

$493.00
RRP $518.00
SAVE $25.00 (5%)
In Stock


Calculate Shipping

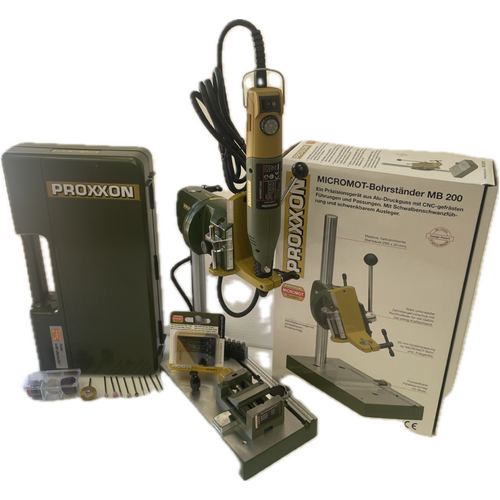

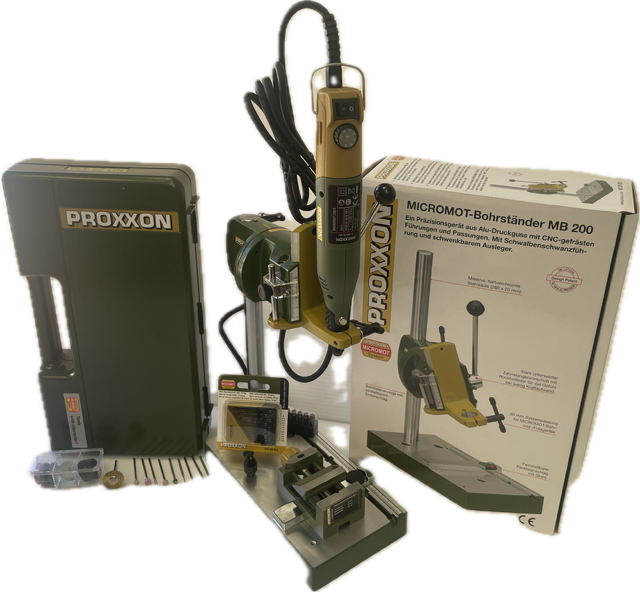

Mill/Drill Stand Super Kit

Includes all of the following:

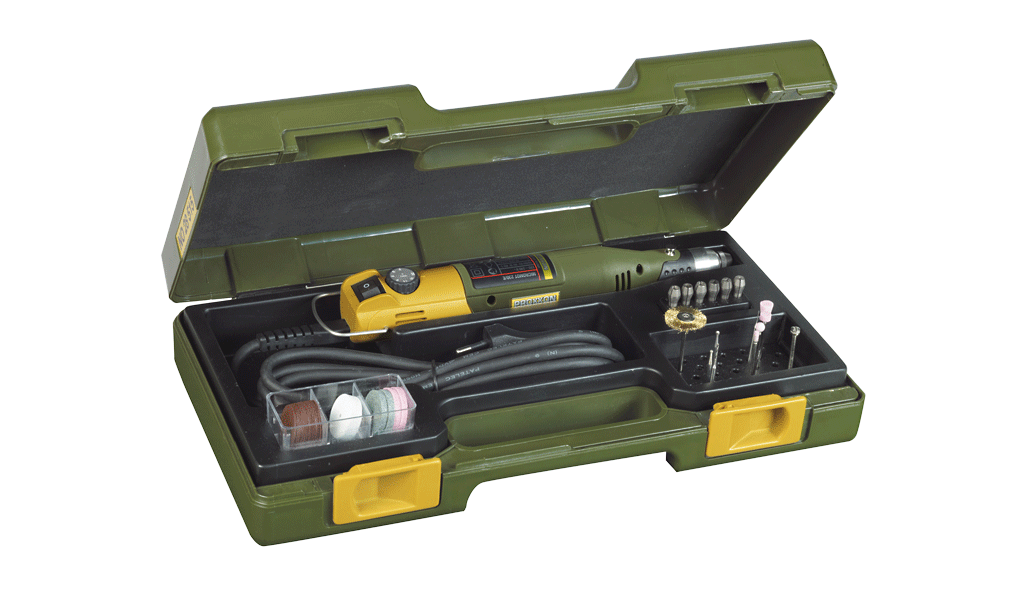

28430 - Industrial MILL/DRILL SET (MM-230/E) - Corded

With a diameter of only 37mm and a weight of just 270g it offers convenient handling second to none in its class! Balanced DC special motor. Quiet and extremely long-lasting. Electronic speed control for speeds from 6,000 to 22,000rpm. Ground, ball-bearing spindle. High quality MICROMOT steel collets: Even the smallest shafts are accurately clamped. No rattling or vibrating of bits and cutters. Spindle for tool exchange can be locked at the push of a button. 20mm standard collar for use with MICROMOT drill stands and horizontal stands. Including MICROMOT 230/E and 34 industrial quality bits and cutters, 6 MICROMOT steel collets (1 each of 1 - 1.5 - 2 - 2.4 - 3 and 3.2mm). Everything finds its place in the attractive plastic case.

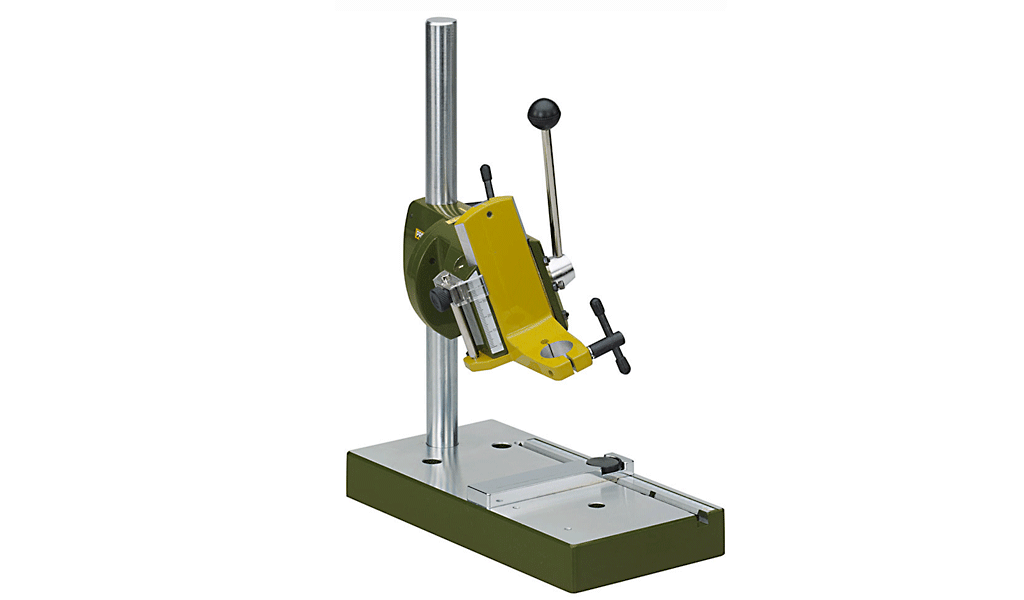

28600 - MICROMOT drill stand MB 200

MICROMOT drill stand MB 200

Head with dovetail guides can be tilted through 90° (scale ring available). Enables bevelled drilling and versatile milling operations.

Geared rack and pinion feed with return spring allowing effortless and sensitive operation. Practical drill depth scale with adjustable limit stop (maximum travel 40mm). With standard 20mm collar for MICROMOT drilling and milling devices. With solid, hard chromium-plated steel column (280 x 20mm), throat capacity (column inside to centre of tool) 140mm.

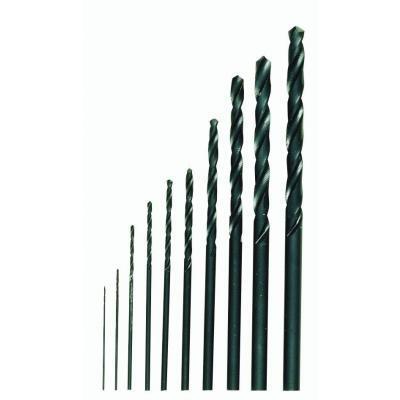

28874 - 10 pc HSS drill set

This twist drill set is manufactured to the German standard DIN 338, and contains 10 drill bits between 0.3mm and 3.2mm diameter. Suitable for drilling both non-ferrous metals and steels.

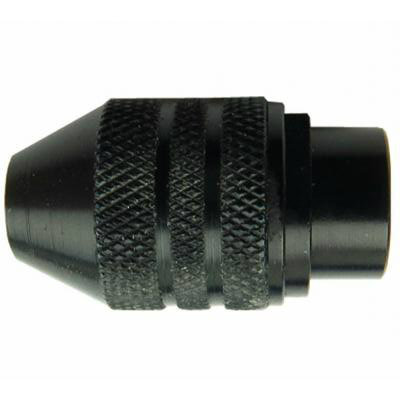

44001 - 0.5 - 3.2mm drill chuck

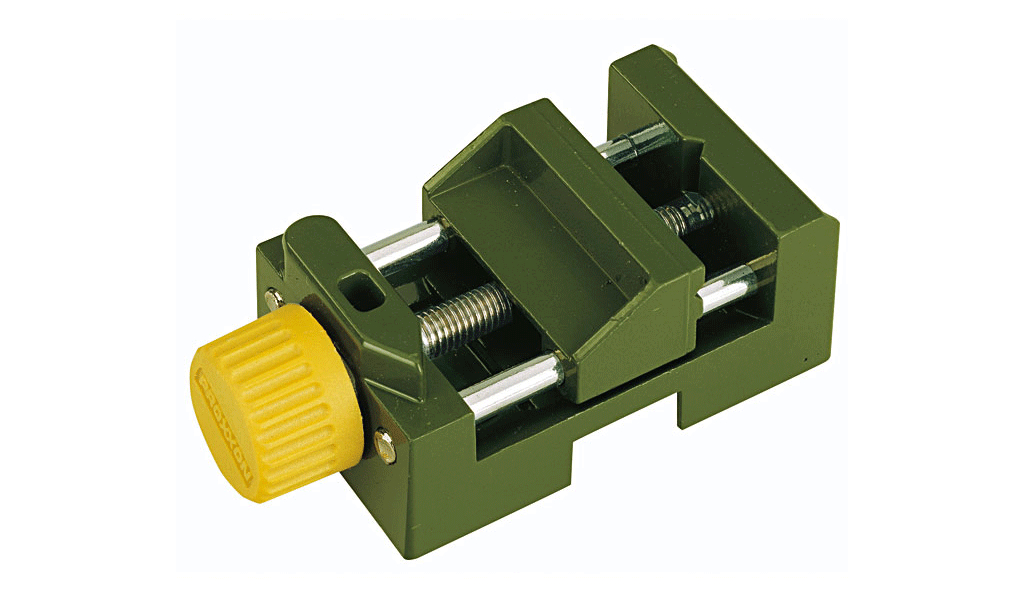

28132 - Machine Vise

The vise is made of die-cast zinc and has three machined sides.

The jaws are 2" (50 mm) wide and 25/64" (10 mm) high and provide horizontal and vertical V-slots for holding round work pieces. The maximum clamping width is 1 11/32" (34 mm). The anvil top with a cast-in hole is optimal for supporting small and fine parts when drilling

(28430KIT)

SKU 28430KIT
Brand Proxxon
Shipping Weight 5.0000kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.050m
Shipping Cubic 0.000125000m3
