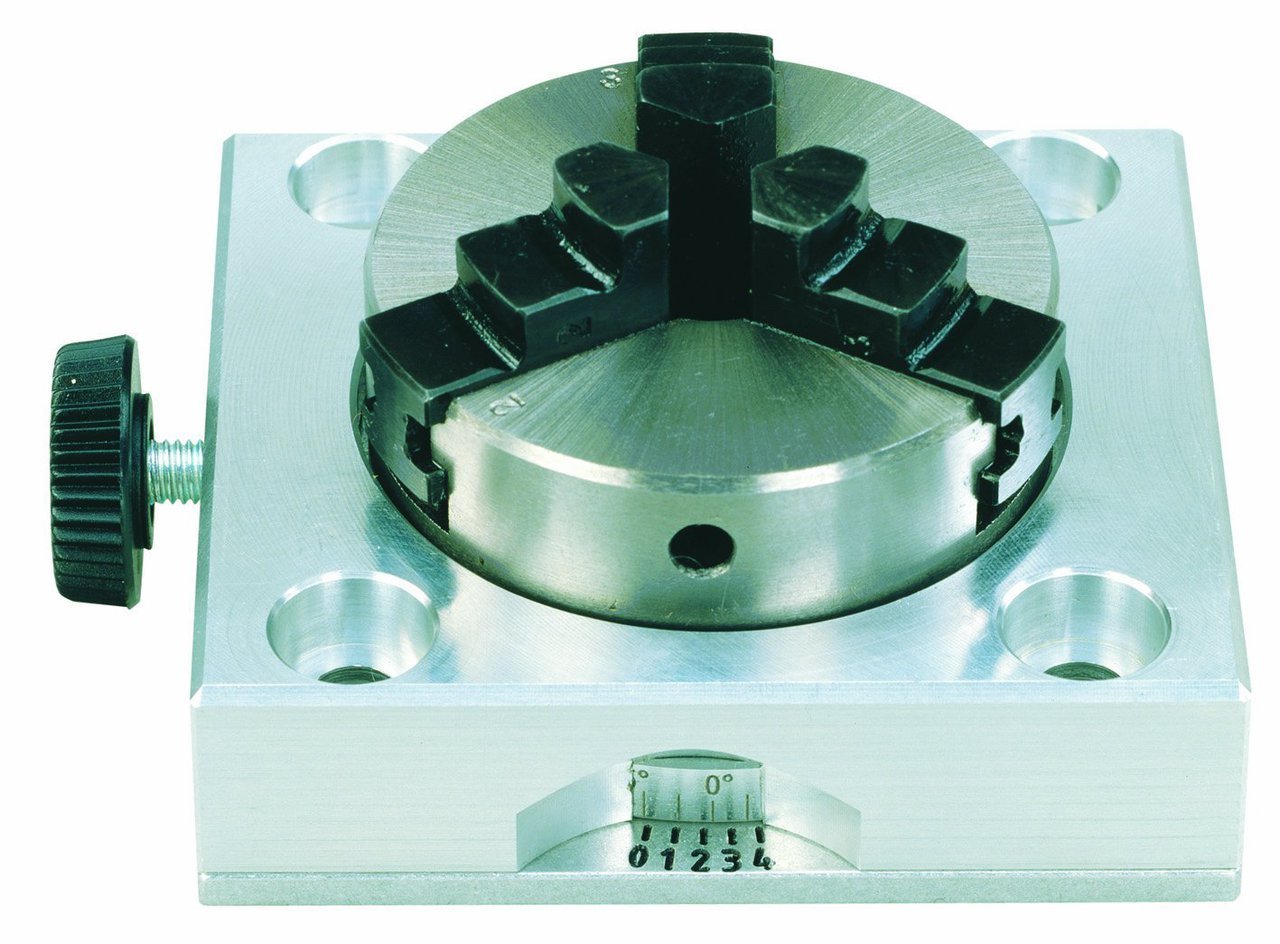

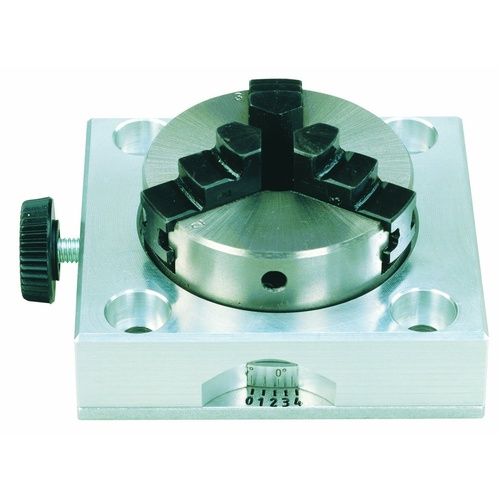

A dividing head is used to drill offset holes or holes with equal spacings, as well as milling key surfaces in 4-sided, 6-sided materials, etc. A scale on the housing enables high accuracy divisions with precise graduations from 0 - 360 degrees. The chuck jaws can hold objects 1.5mm - 32mm inside, or can be reverse to hold objects 12mm - 65mm outside.
The chuck has an 11mm bore, which allows long items to be clamped vertically. four mounting holes can be used to secure the unit vertically or horizontally. T-nuts are included for mounting the head on the milling machine MF 70 or compound table KT 70.
Included components:
- T-nuts compatible with Micromot table system
- delivered in wooden box with sliding lid
Technical specifications:
- inside capacity: 1.5mm - 32mm
- outside capacity: 12mm - 65mm
- bore: 11mm
- 72mm x 64mm x 38mm
This item is supplied in a convenient wooden storage box
(24264)
