H Single Action Airbrush Set - PAASCHE

SINGLE ACTION – SIPHON FEED – EXTERNAL MIX

H-SET -  The world's most popular single action airbrush recommended for beginners. Because the medium never enters the body of the airbrush, the H airbrush is perfect for spraying ceramic glazes, lacquers and varnishes that would not be spray-able in most airbrushes.

Sturdy and flexible, the H airbrush is dependable and adaptable for practically any hobby use. Suitable for both left and right-handed users.

• H#1 Spray Pattern .8mm - 25mm Light Fluids
• H#3 Spray Pattern .8mm - 32mm Medium Fluids
• H#5 Spray Pattern 1.6mm - 38mm Heavy Fluids
• Recommended air pressure .5 - 1 cfm @ 20 - 45 lbs.
• Clean dry air is essential for best results.

Comes with all three sizes – 1, 3 and 5 (needle, tip and aircap) - .45mm, .65mm, 1mm

MADE IN THE USA

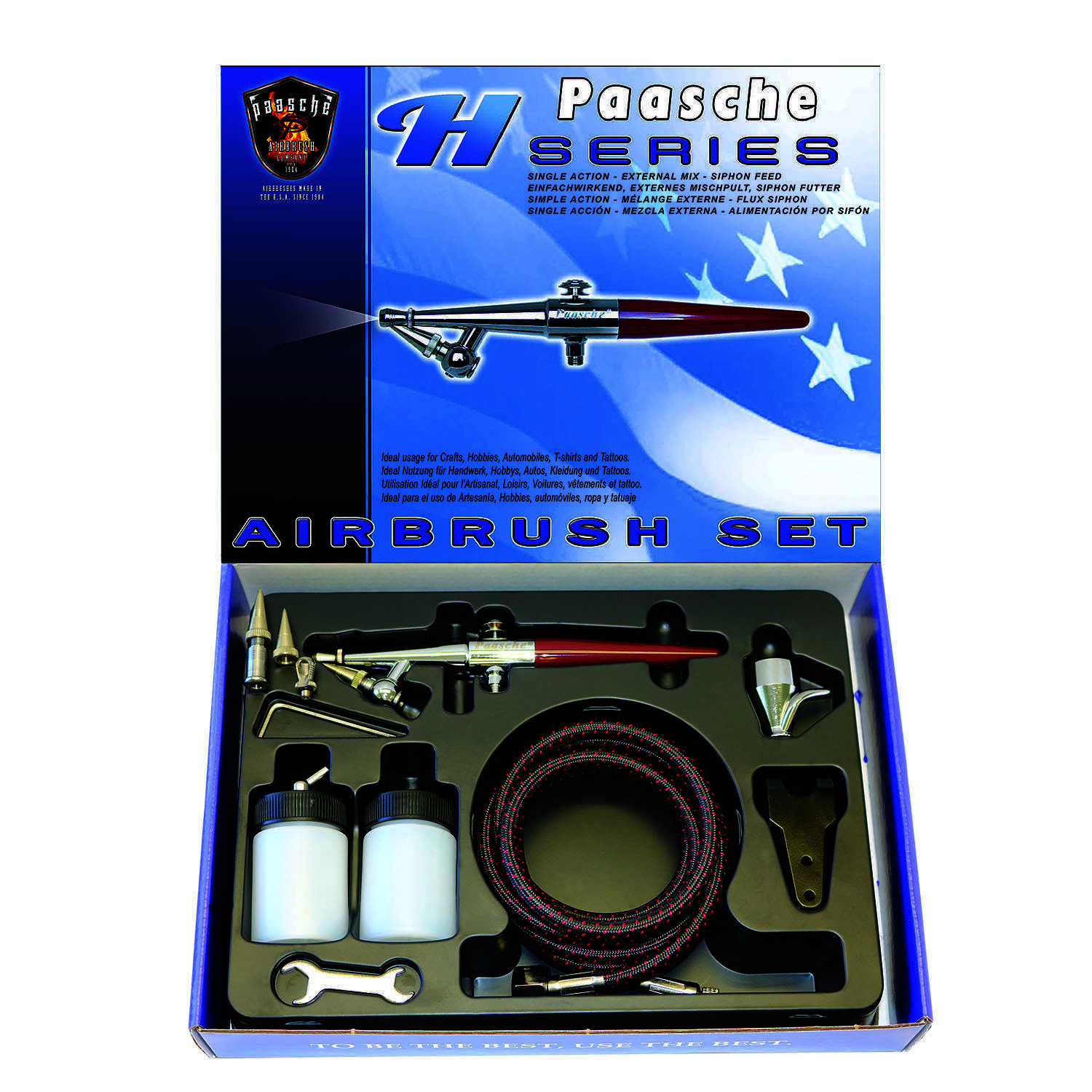

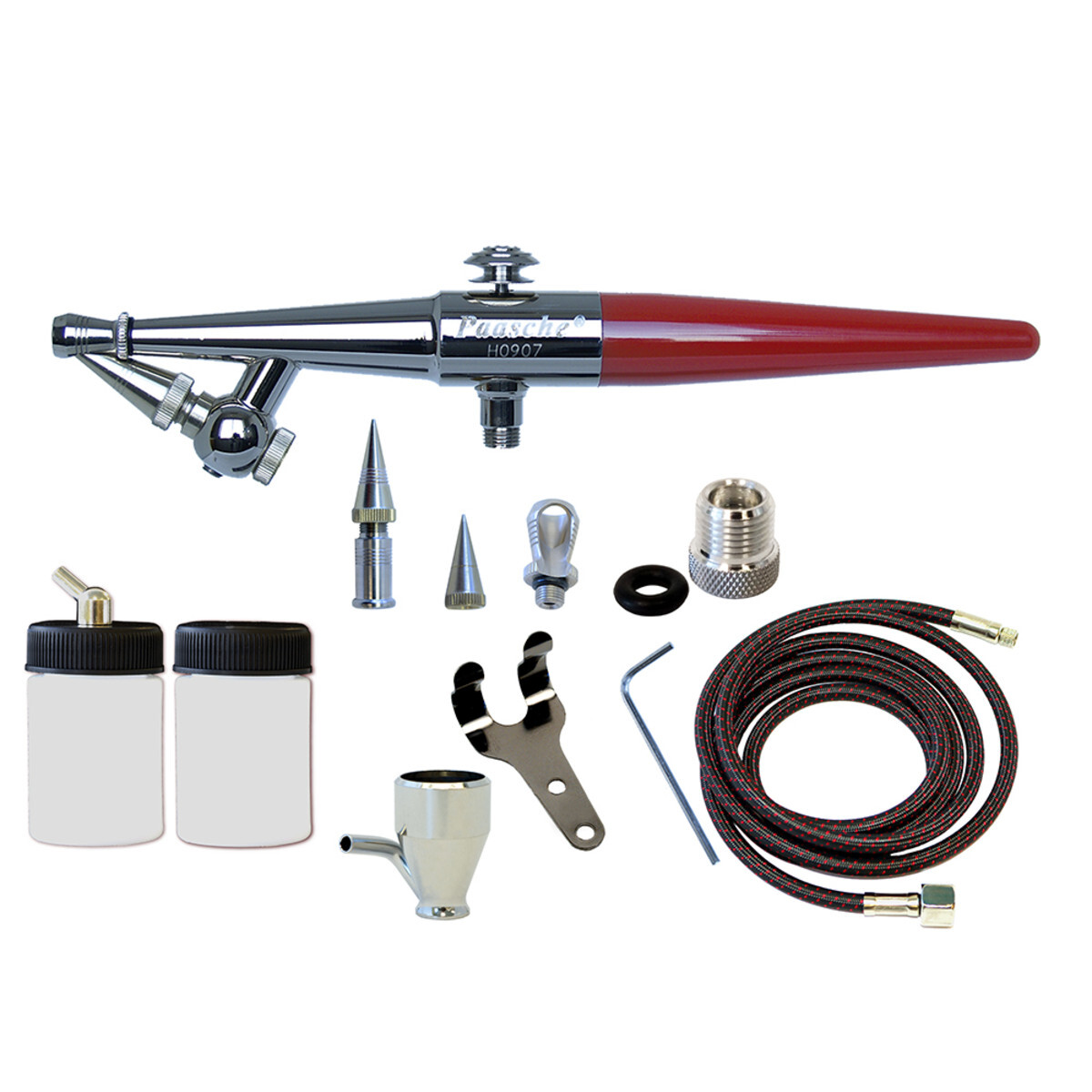

H-SET COMPONENTS:

Small Changes from previous kits the ​HC-1-3 now works on both size 1 & 3 Heads and the HN-1-3 now works on both 1 & 3 Heads

H#3 Single-Action Airbrush
A-1/8-6 6' Air Hose w/Couplings
H-1/4-OZ Metal Colour Cup (1/4oz/7cc)
H-1-OZ Plastic Colour Bottle Assembly (1oz/29cc)
H-194 Plastic Bottle, Cap/Gasket (1oz/29cc)
HT-1 & 5 Fluid Tip
HN-1-3 & HN-5 Needle
F-186 Wrench
HC-1-3 & HC-5 Aircap
Adapter - Paasche female - Sparmax male
A-34 Hanger
TTALB “22 Airbrush Lessons” Booklet
Parts List

SPARE PARTS LIST

Combine with super quiet air compressor

The Following air-fittings are available separately:
Quick disconnect coupling suit Paasche airbrushes

PAASCHE AIRBRUSH - Hose adaptor 1/8" male - With this your Paasche Airbrush will now connect to Iwata, Sparmax airhose 1/8" female fitting
