Proxxon MICRO Woodturning Lathe DB 250 - Complete Kit

$598.00
RRP $644.81
SAVE $46.81 (7%)
In Stock


Calculate Shipping

MICRO Woodturning Lathe DB 250 "Complete Kit"

You can make glasses, cups, saucers, vases and columns for a doll house. In model trains, one can make lighting masts, windows, tanks. Limbs for marionettes and hundreds of classical miniature turning tasks may be carried out with ease. The electronic speed control assists in the lower range in a 'semi-automated' painting process.

Technical data:
Motor 220 - 240V. 100W. 50/60Hz. Centre distance of 250mm, 40mm swing. 25mm swing over support. Variable speed control covering between 1,000 and 5,000rpm. Headstock spindle bore of 10mm. Tailstock travel 20mm. Includes 6 collets (2 - 3 - 4 - 6 - 8 - 10mm), drive centre, live centre and face plate.


Powerful drive motor with speed control between 1,000 and 5,000rpm.

The bed is made from stable, thick-walled aluminium profile.

Ball bearing spindle is bored through at 10mm. For series production of small parts.

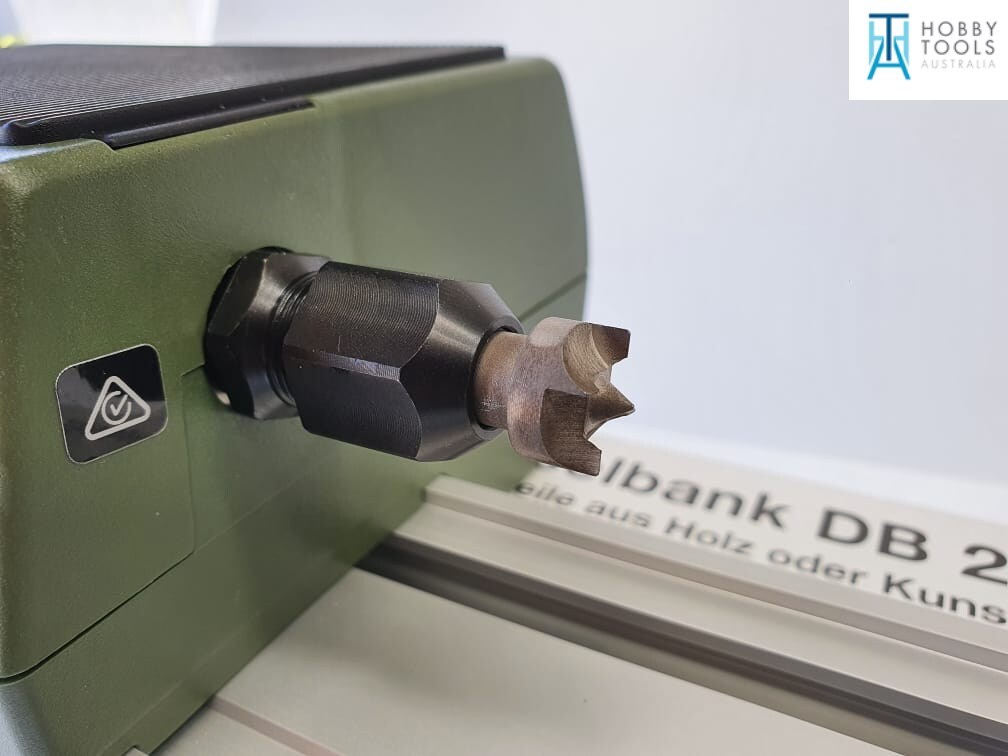

Square carrier with back centre and 10mm shaft.

The stable tool rest is adjustable in all directions.

Tailstock with quill travel.

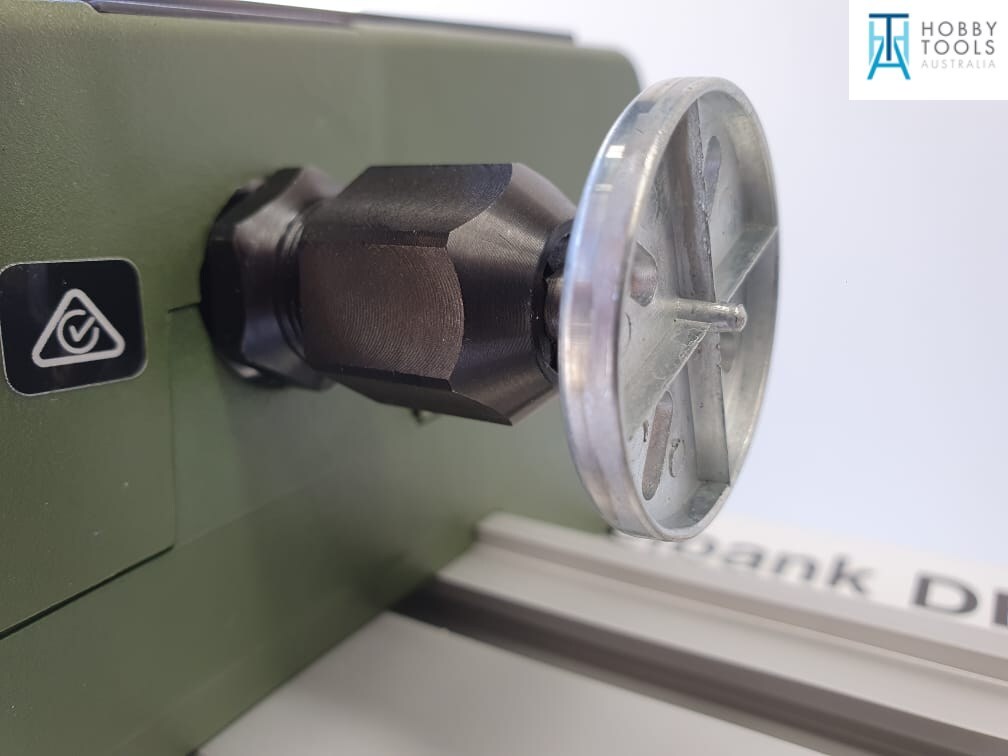

A face plate (for turning larger work pieces) is included.

 NO 27 020

The electronic speed control assists in the lower range in a 'semi-automated' painting process. Work pieces are secured by means of collets (1 each of 2 - 3 - 4 - 6 - 8 and 10mm are included).

Package size:


L:485mm x W:140mm x H:140mm - Weight of complete kit 5KG

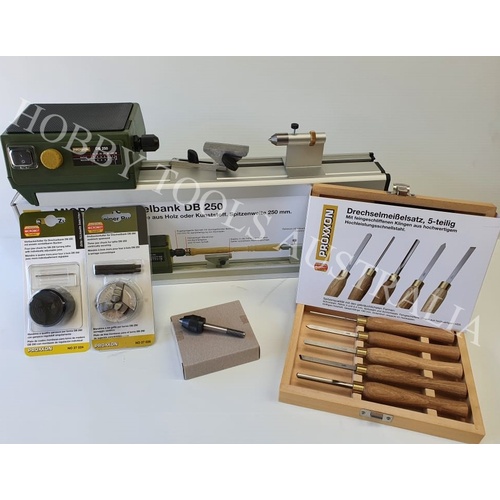

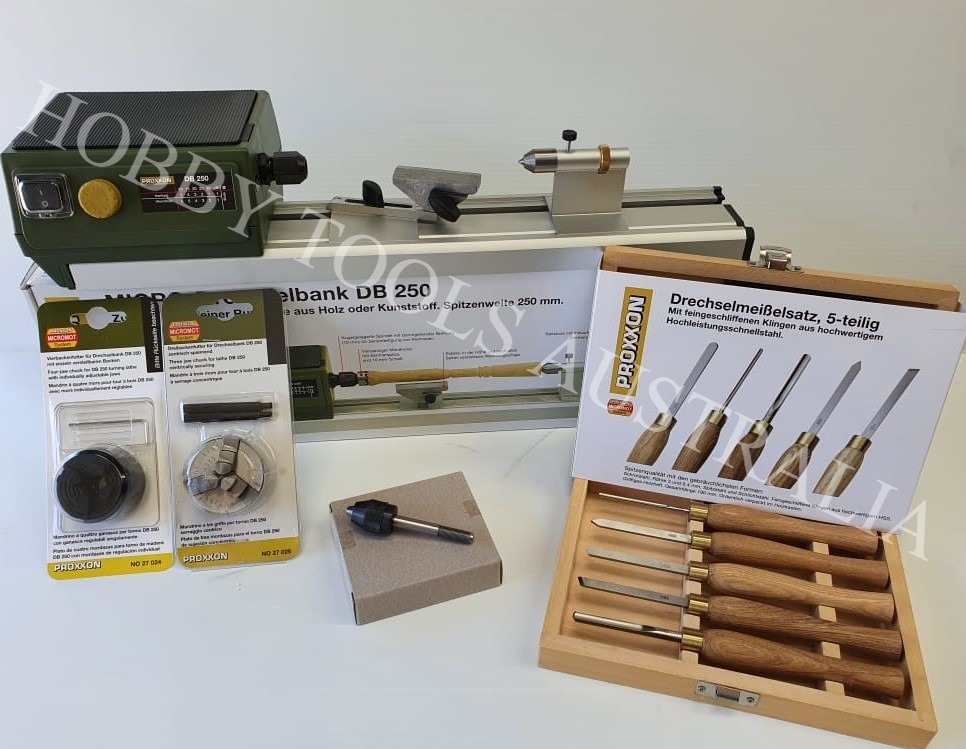

This complete package includes the following items:

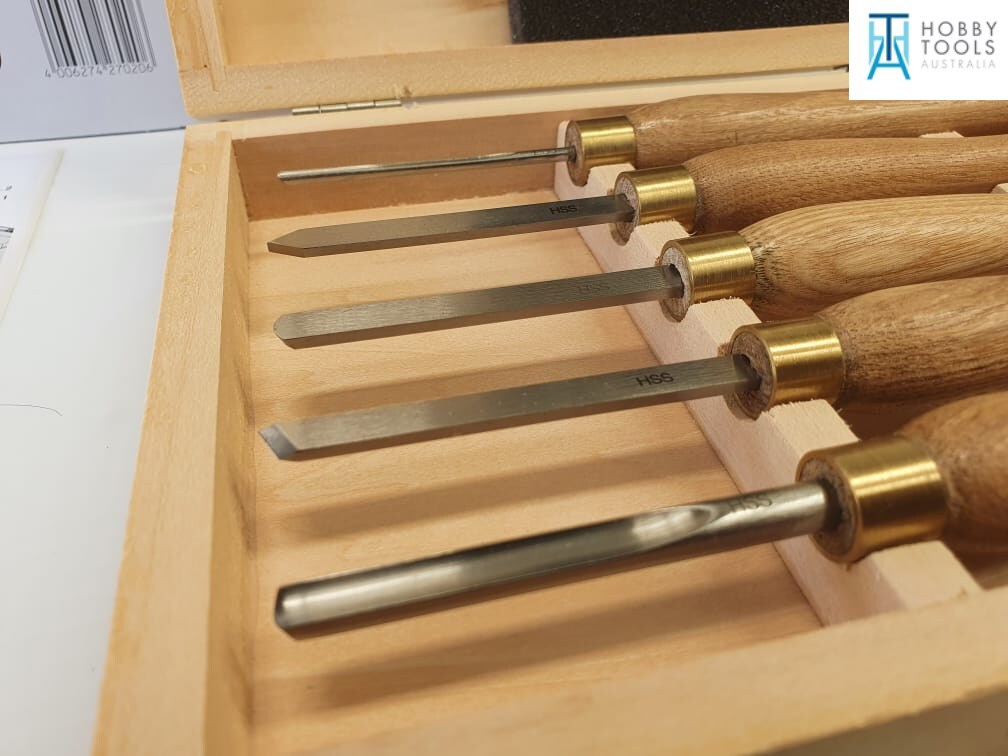

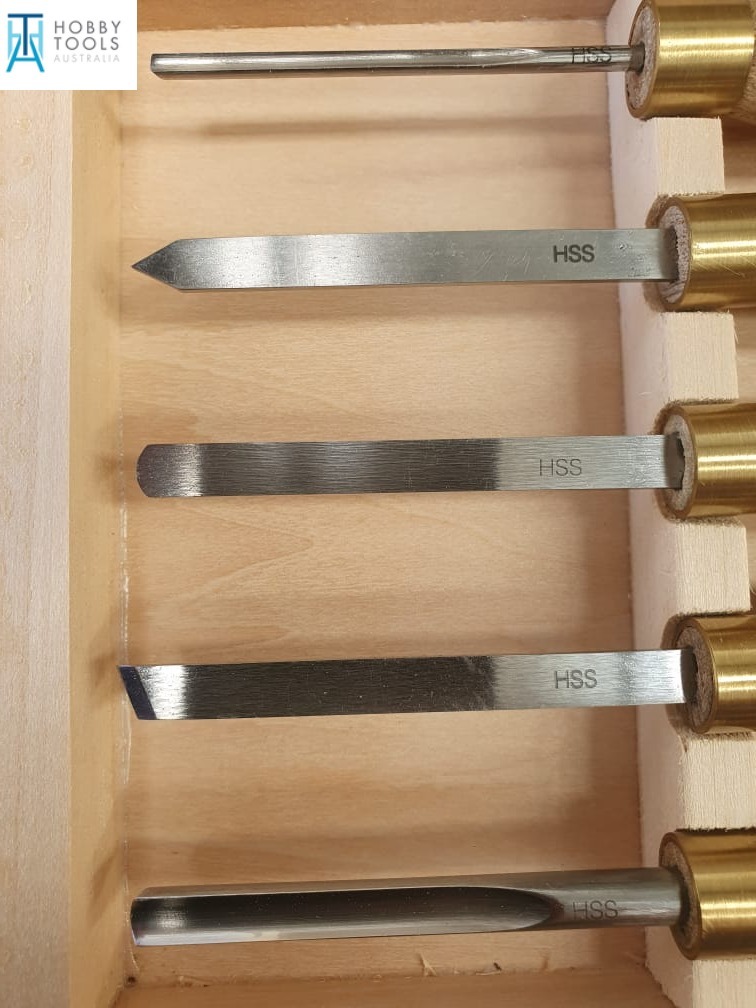

  • Five Piece Turning Chisel Set.

1 x tube chisel
1 x flat chisel
1 x pointed chisel
1 x anvil chisel
1 x finishing chisel

NO 27023

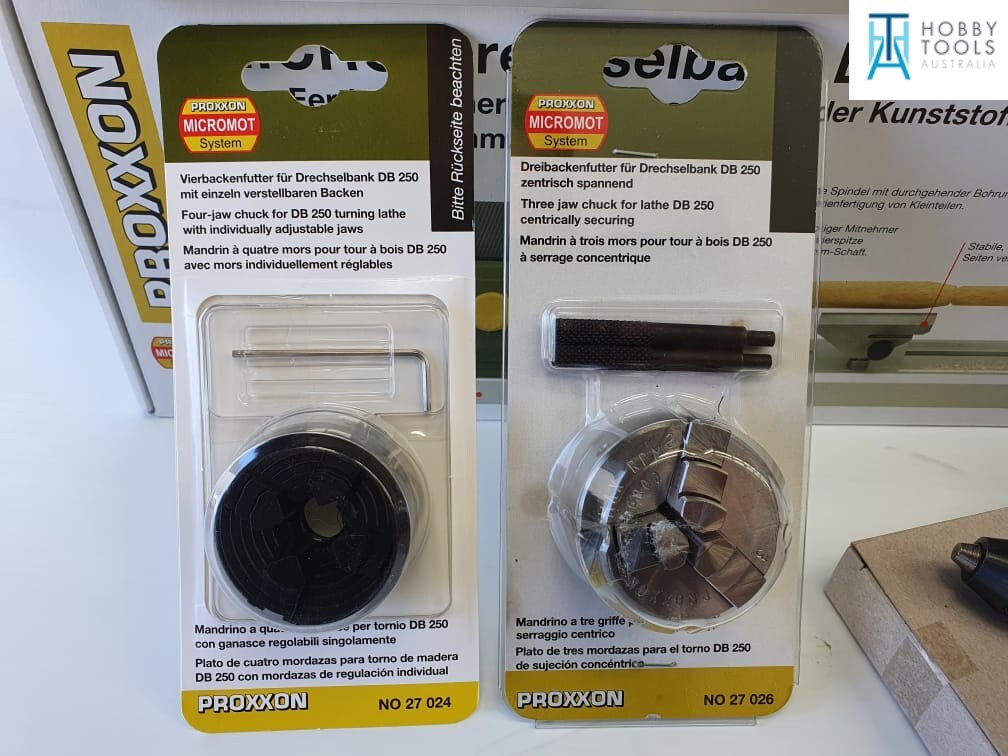

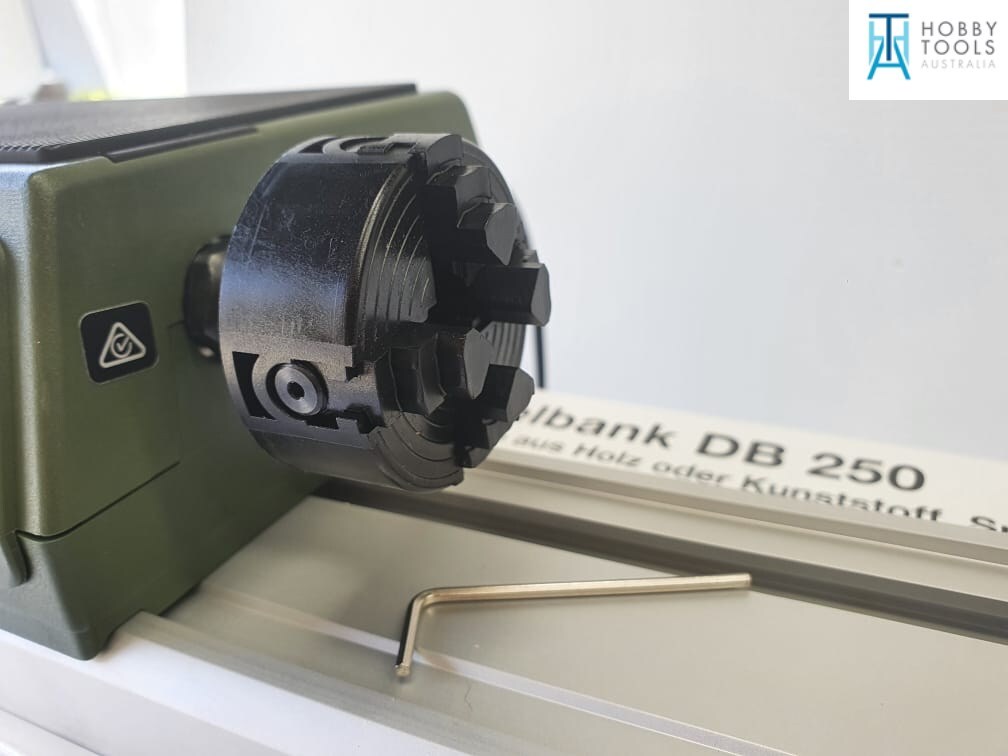

  • Independent Four Jaw Chuck.

Used to clamp asymmetrical pieces such as rectangles. The reversible jaws clamp from 1.5 - 35 mm (inside) and 14 - 67 mm (outside). The headstock spindle of thread M16 x 1 screws directly into the chuck.

NO 27024

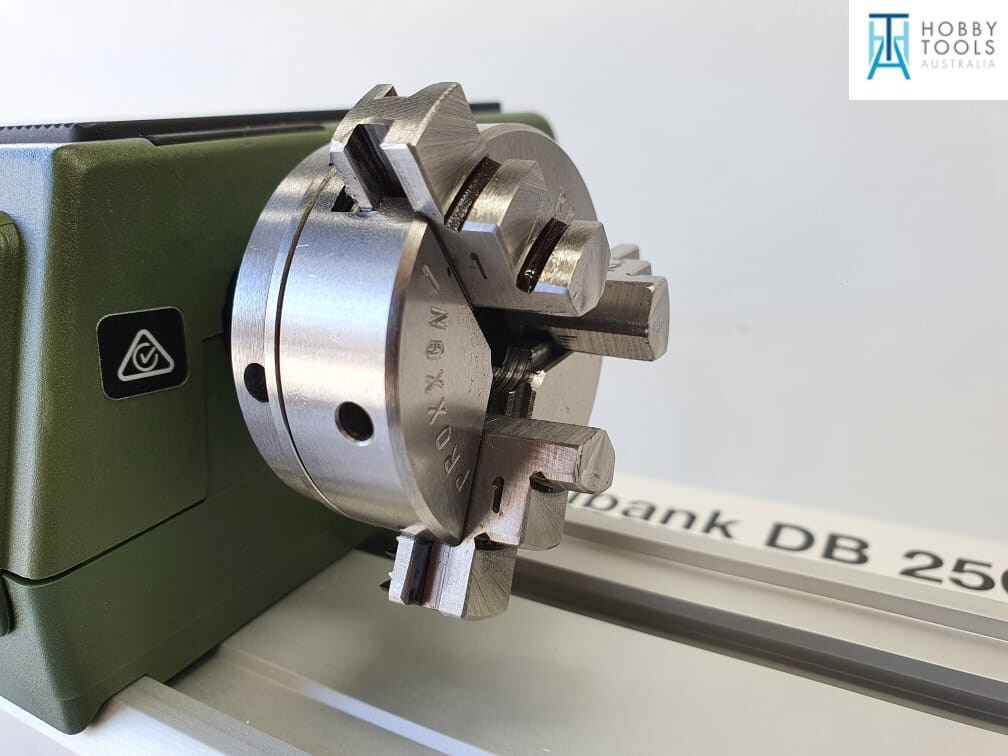

  • Three Jaw Chuck (used for concentric clamping)

Made from zinc diecast and offering 1.5 to 32 mm and 12 to 65 mm when reversing the jaws. The chuck has a M16 x 1 thread for fitting directly to the DB 250 spindle.

NO 27026

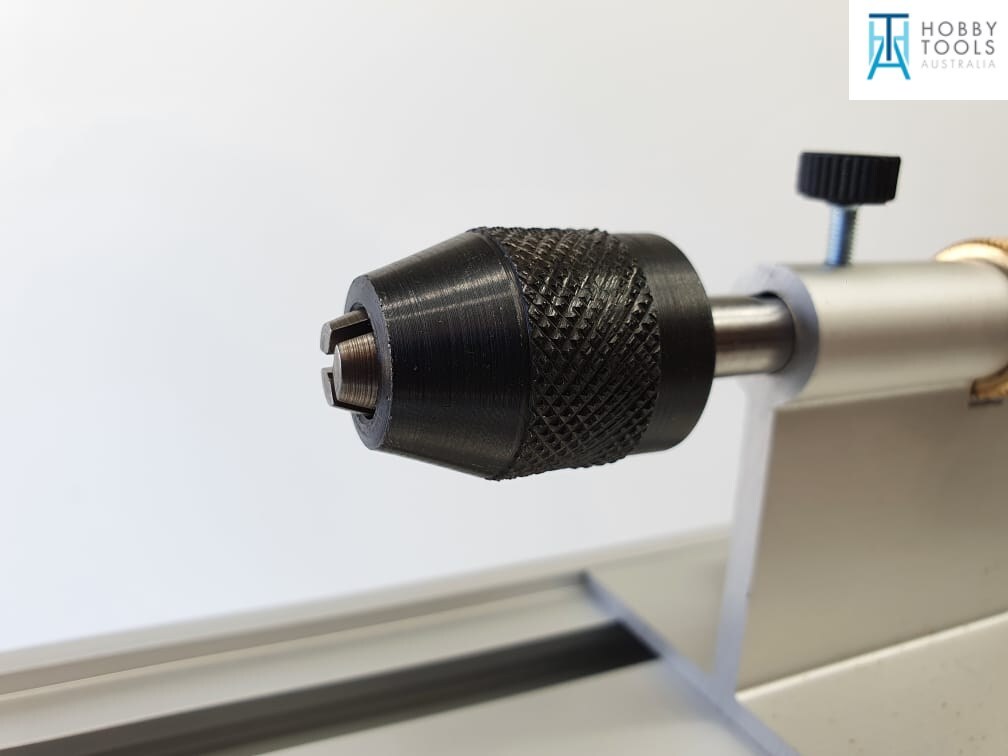

Clamps up to 5.0 mm. Is inserted on the spot of the rotating back centre. The feed movement results from sliding the complete tailstock.

NO 27028



Product Manual (including spare parts list) available below:

27020 Manual

(27020KIT)

SKU 27020KIT
Brand Proxxon
Shipping Weight 5.0000kg
Shipping Width 0.170m
Shipping Height 0.110m
Shipping Length 0.530m
Shipping Cubic 0.009911000m3
