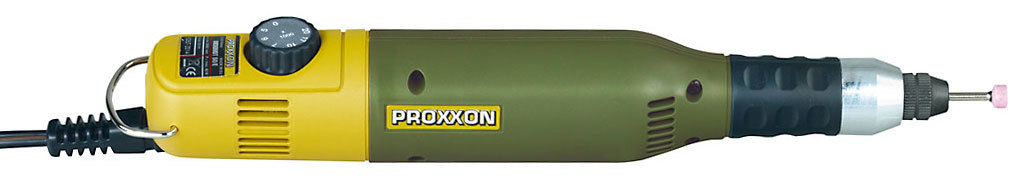

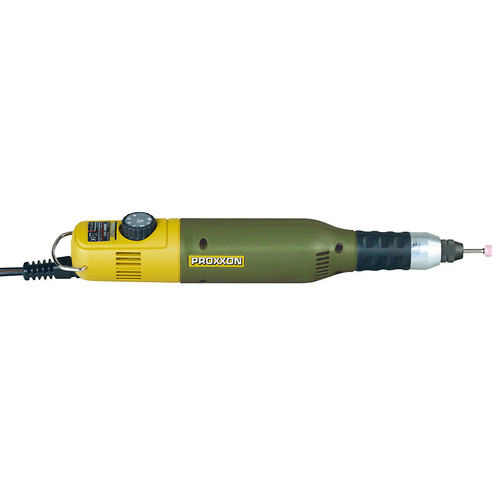

Precision mill/drill tool MICROMOT 60/E (12V DC)
$78.00
With a diameter of only 35mm and its low weight (230g) it offers convenient handling second to none in its class. The balanced motor effortlessly drives the ground ball bearing spindle allowing for a quiet run with a pleasant sound. High-quality MICROMOT steel collets ensure accurate clamping of even the smallest shafts, without rattling or vibrating of bits and cutters.
A mains adapter is required to operate the MICROMOT 60 devices. We recommend the PROXXON mains adapter NG 2.
Note:
The speed control of our 12 volt devices only works when operated via nonstabilised power supply units (e.g. all MICROMOT mains adapters). Connection to stabilised power supply units is possible. However, the devices will then operate with maximum rotational speeds (also applies to operation with batteries).
Mill/drill unit MICROMOT 60/E
Infinitely variable electronic speed control and high engine power also at lower speeds.
Included components:
-
six high-concentricity steel collets: 1.0mm, 1.5mm, 2.0mm, 2.4mm, 3.0mm, and 3.2mm, with closure nut
Technical specifications:
speed: 5,000rpm to 20,000rpm
maximum power consumption: 40W
20mm Micromot-system collar
glass-fibre reinforced polyamide housing
mass: 230g
length: 220mm
EU Class-2 insulation
Product Manual (including spare parts list) available below:
28510 Manual
Requires a 12V-18VDC adapter supplying at least 1A.
(28510)
| SKU | 28510 |
| Barcode # | 4006274285101 |
| Brand | Proxxon |
| Shipping Weight | 0.4900kg |
| Shipping Width | 0.450m |
| Shipping Height | 0.290m |
| Shipping Length | 0.050m |
| Shipping Cubic | 0.006525000m3 |
