Proxxon Lathe Drill/Grind Tool Holder

$1,573.00
RRP $1,690.00
SAVE $117.00 (7%)
In Stock


Calculate Shipping

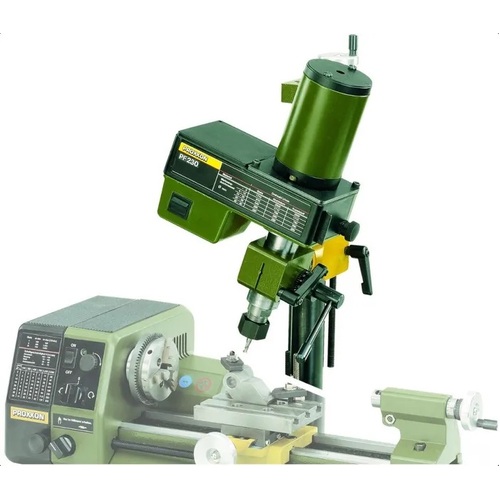

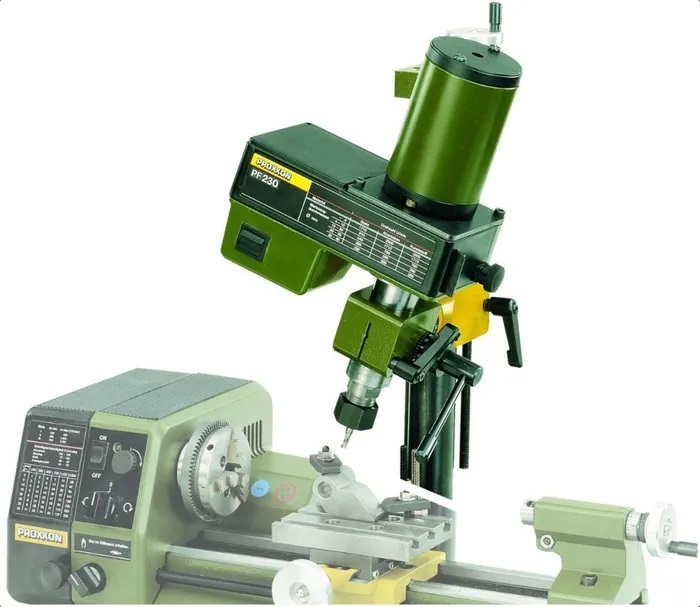

Mill/Drill Head Proxxon 24104 MicroMot PF 230 (220-240V)

Convert the lathe into a complete machining center.

This milling head set includes the solid column (35mm x 400mm), mounting bracket and bolts. You will find that the mounting position needed on the PD 230/E (Older Model) and Proxxon Lathe PD 250/E  is already milled.

The lathe's top slide can be replaced with the T-slotted mill table (supplied in this kit), and can function as a compound table with longitudinal and cross-wise X-Y travel. The mill/drill head in this kit is identical to the head of the milling machine FF 230. We also include a collet set.

Included components:
  • mill table to replace top slide
  • 1 x 6mm collet
  • 1 x 8mm collet
  • 1 x 10mm collet
Technical specifications:
  • column diameter: 35mm
  • column height: 400mm
  • table dimensions: 110mm x 70mm
  • T-slot dimensions: 12mm x 6mm x 6mm, three slots

Product Manual (including spare parts list) available below:

24104 Manual

(24104)

SKU 24104
Barcode # 4006274241046
Brand Proxxon
Shipping Weight 10.0000kg
Shipping Width 0.970m
Shipping Height 1.000m
Shipping Length 0.070m
