Proxxon Metalturning Lathe PD 250/E - Complete Kit

$3,398.00
RRP $3,546.48
SAVE $148.48 (4%)
In Stock


Calculate Shipping

Proxxon Metalturning Lathe PD 250/E - "Complete Kit"

For face, longitudinal and taper turning, thread-cutting.  For machining steel, brass, aluminum and plastic.  Mounting flange for fastening the mill/drill head PF 230.
Centre distance 250mm. Swing 70mm. Height over cross slide 43mm.

Machine bed: Of cast iron, wide-legged prismatic guide. For vibration-free work even at high loads. Rear flange for mounting the mill/drill head PF 230. Covered lead spindle.
Headstock: Of die-cast aluminum. Precision bearing mounted main spindle (run-out without chuck 1/100mm) with 10.5mm opening. Chuck side 70mm hollowed to 14mm. With MK 2 bore. Rotary switch for engaging the automatic feed via lead and feed spindle (optionally 0.05 or 0.1mm/rev.).

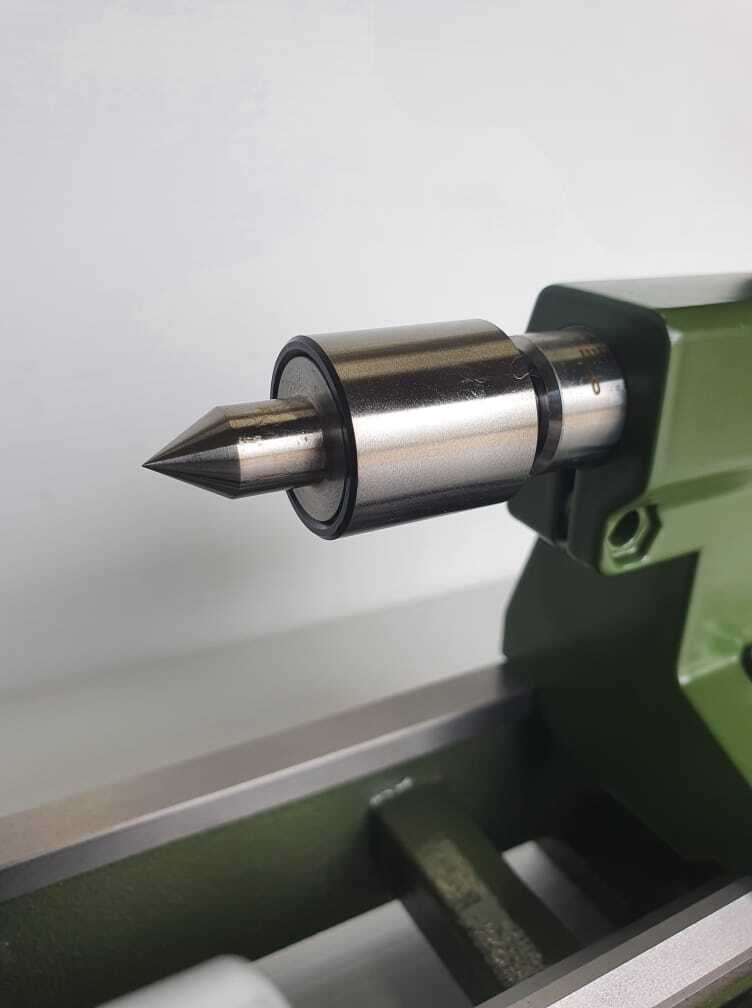

Tailstock: Of die-cast aluminum. Sleeve Ø 20mm, retractable up to 30mm. With millimeter scale, MK 1 bore and live center.
Support: Bed carriage made of die-cast zinc. Cross slide and top slide of steel (adjustment 60 or 45mm). Turning tool post for cutting tools size 8 x 8mm.
Drive: Quiet DC special motor with 3-stage belt drive for 300 - 900 and 3,000rpm. With additional speed control (full-wave electronics) continuously adjustable to 100 - 300 or 1,000rpm, depending on belt ratio. Clockwise - anticlockwise rotation. Main switch with emergency stop function and restart protection.

Machine bed: Of cast iron, wide-legged prismatic guide. For vibration-free work even at high loads. Rear flange for mounting the mill/drill head PF 230. Covered lead spindle.
Headstock: Of die-cast aluminum. Precision bearing mounted main spindle (run-out without chuck 1/100mm) with 10.5mm opening. Chuck side 70mm hollowed to 14mm. With MK 2 bore. Rotary switch for engaging the automatic feed via lead and feed spindle (optionally 0.05 or 0.1mm/rev.).
Tailstock: Of die-cast aluminum. Sleeve Ø 20mm, retractable up to 30mm. With millimeter scale, MK 1 bore and live center.
Support: Bed carriage made of die-cast zinc. Cross slide and top slide of steel (adjustment 60 or 45mm). Turning tool post for cutting tools size 8 x 8mm.
Drive: Quiet DC special motor with 3-stage belt drive for 300 - 900 and 3,000rpm. With additional speed control (full-wave electronics) continuously adjustable to 100 - 300 or 1,000rpm, depending on belt ratio. Clockwise - anticlockwise rotation. Main switch with emergency stop function and restart protection.

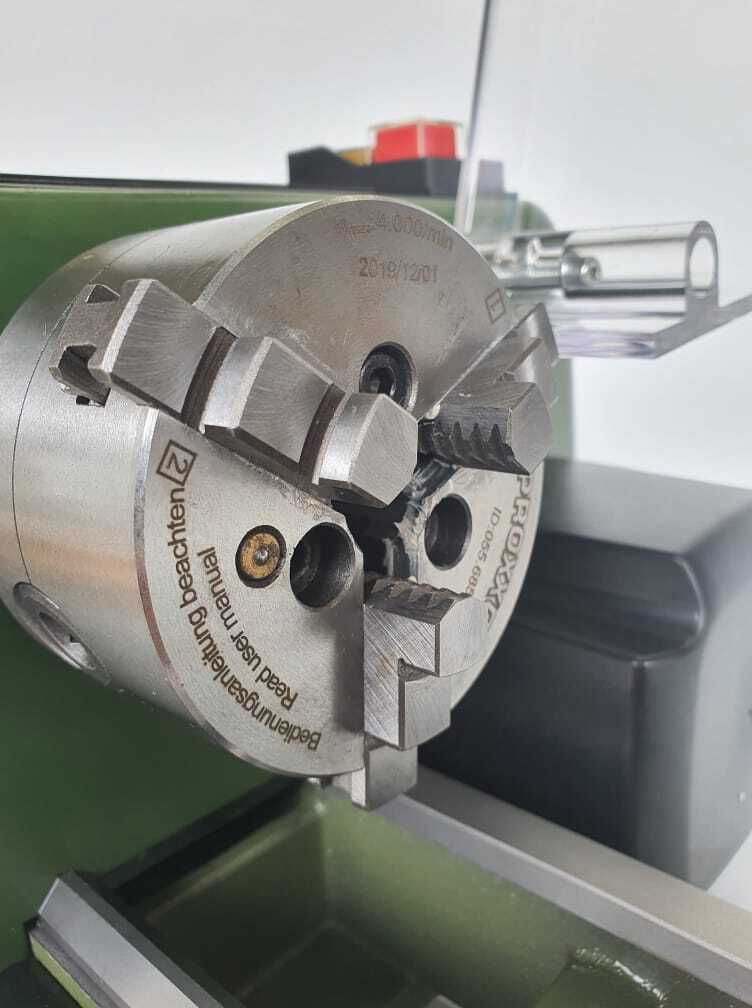

Lathe chuck: High quality 3-jaw chuck as per DIN 8386 Class 1 (concentricity tolerance 0.04mm). Capacity through reversing jaws from 2 - 75mm. Including lathe chuck guard with safety shutdown.
Handwheels: Of aluminum, with adjustable scale ring (1 division = 0.05mm, 1 revolution = 1mm).
Thread cutting device: With change gears for left-hand and righthand threads of the most important metric pitches (0.5 - 0.625 - 0.7 - 0.75 - 0.8 - 1 - 1.25 - 1.5mm).
Other technical data: 230V. 50/60Hz. Size L 560, W 270, H 170mm. Weight approx. 12kg.

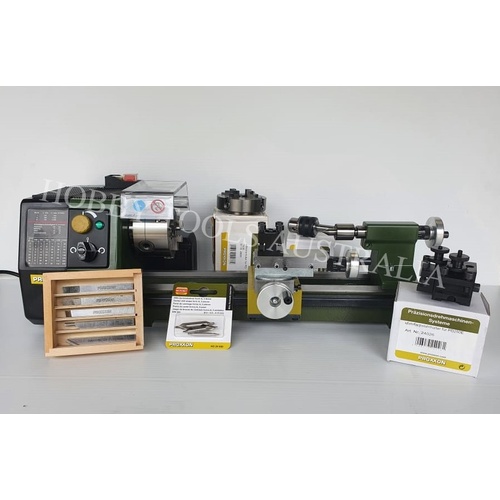

This complete package includes the following items:

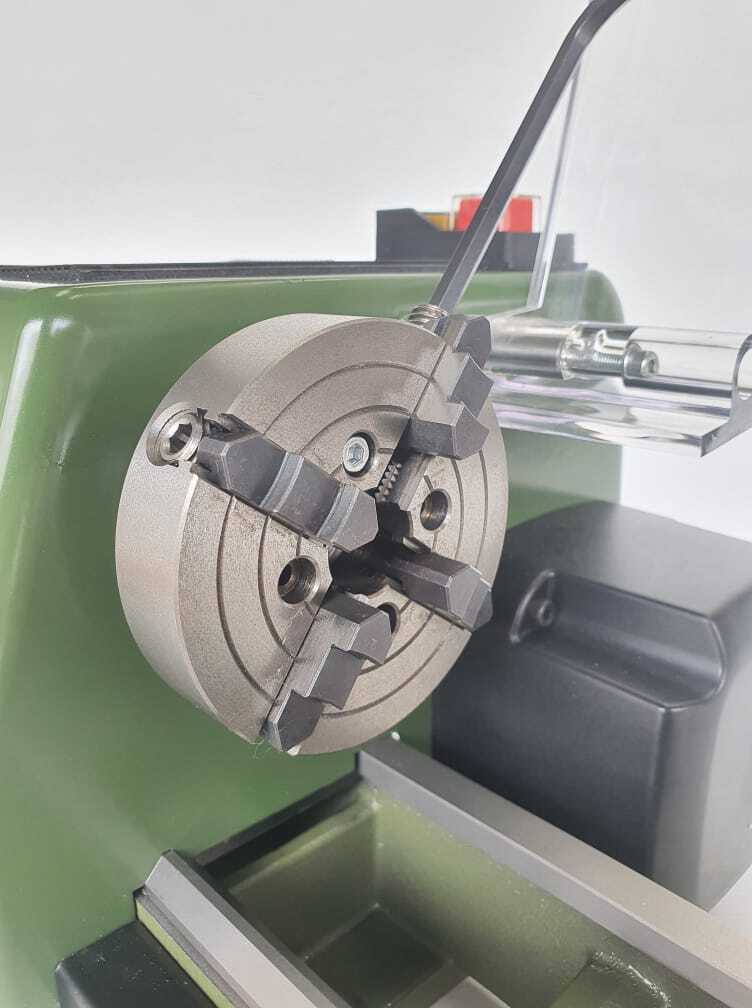

  • Proxxon 4 Jaw Chuck with Independent Jaws

To clamp angular and asymmetrically shaped work pieces. Clamping range up to 80 mm. Chuck Ø 75 mm

(24036)

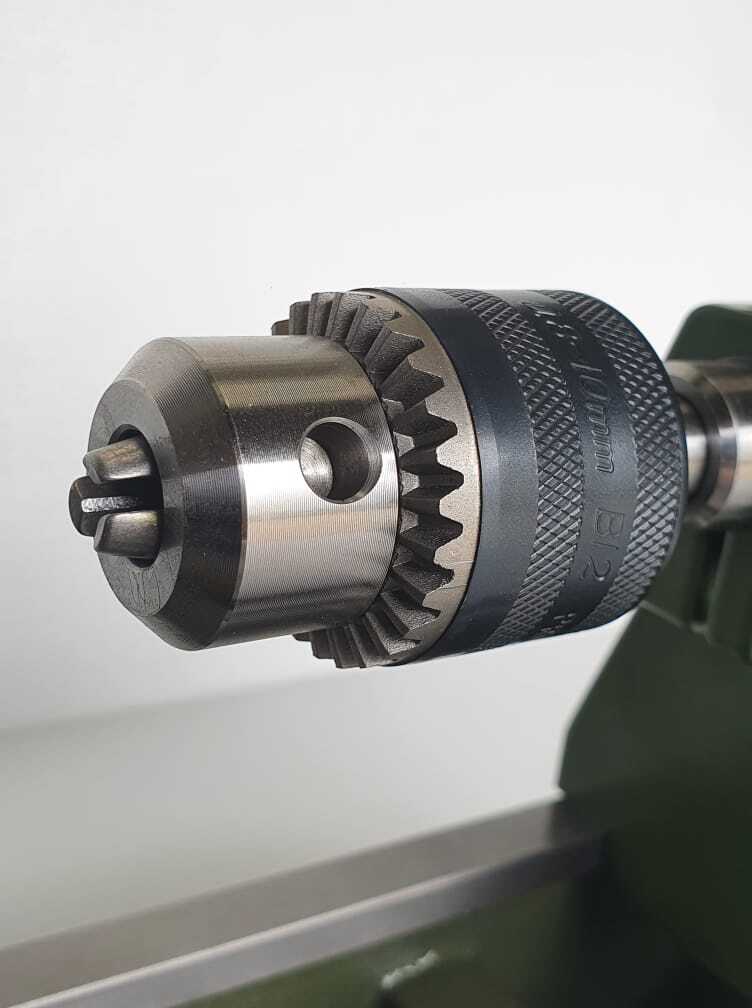

  • Proxxon Tailstock Mounting Gear Chuck 10mm

Chucking capacity: 0.8mm x 10mm

(24020)

  • Proxxon 5-piece HSS Lathe Tool Set

Technical specifications

  • 8mm x 8mm x 80mm shafts to suit PD 250/E lathe

Included components

  • roughing cutter
  • parting cutter
  • finishing cutter
  • left cutter
  • right cutter
  • supplied in a wooden box

(24530)

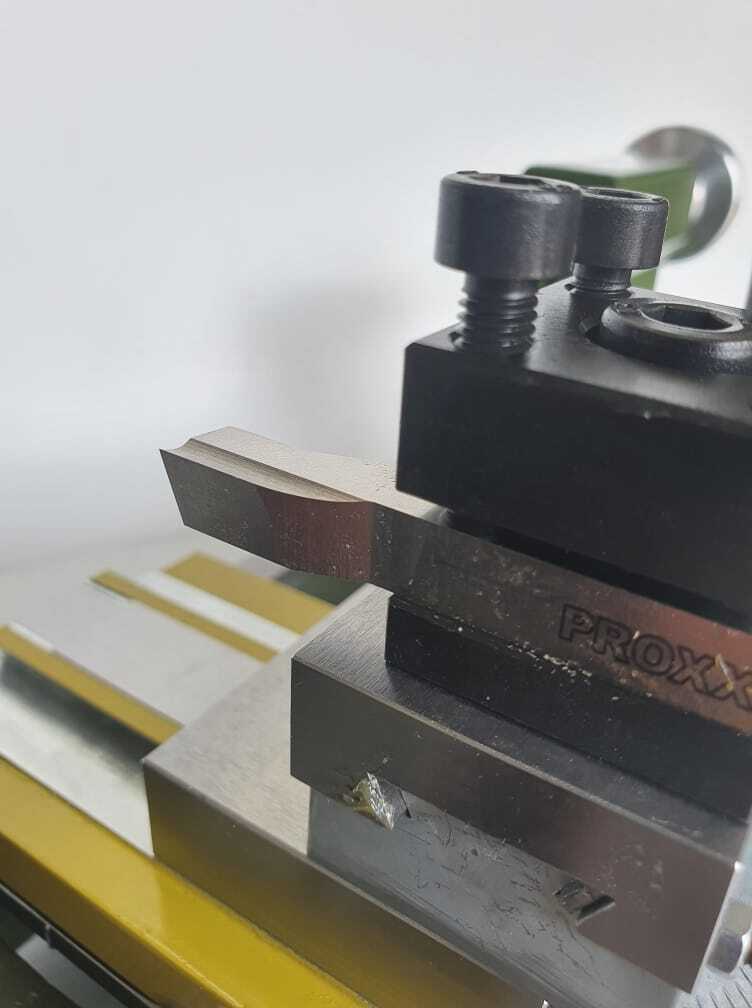

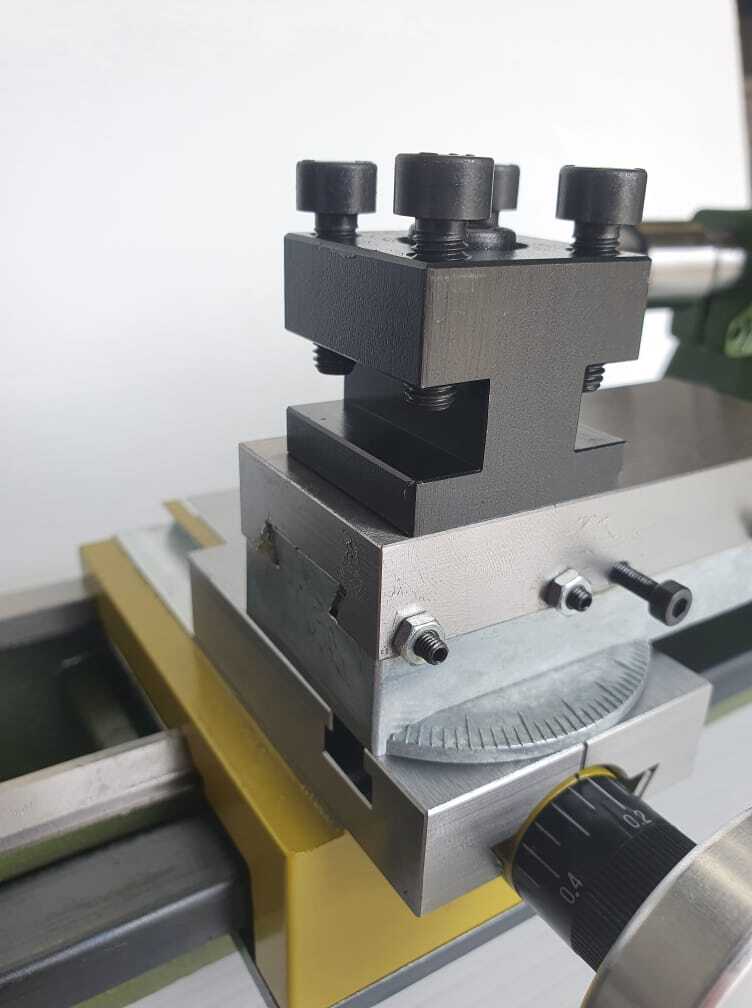

  • Proxxon Quick Change Tool Post

Quick change tool post - easy to use!
For quick tool change and easy height adjustment. Includes 2 tool holder elements.

(24026)

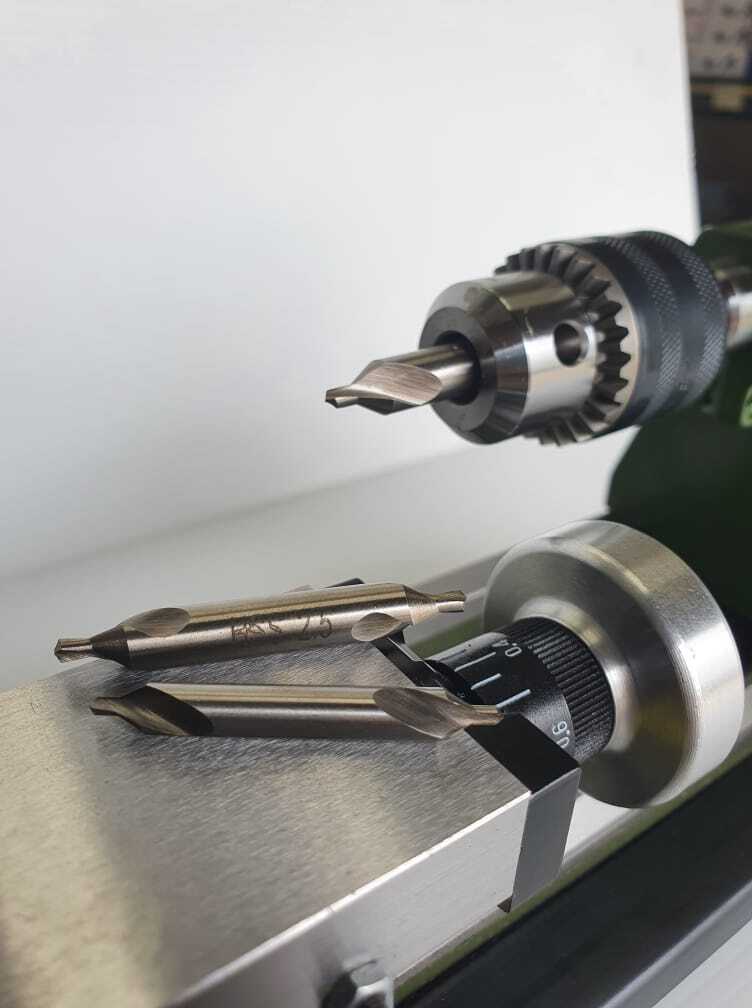

  • Proxxon Three Piece Centre Drill Set

Made of HSS steel. DIN 333 (type A) 60°. Complete set center drills with sizes of 2 - 2.5 and 3.15mm.

(24630)





(24002KIT)

SKU 24002KIT
Brand Proxxon
Shipping Weight 19.0000kg
Shipping Width 0.850m
Shipping Height 0.250m
Shipping Length 0.360m
Shipping Cubic 0.076500000m3
