PROXXON Bench Drill Kit TBM 220

Includes MS4 Vise

$439.00
RRP $475.00
SAVE $36.00 (8%)
In Stock


Calculate Shipping

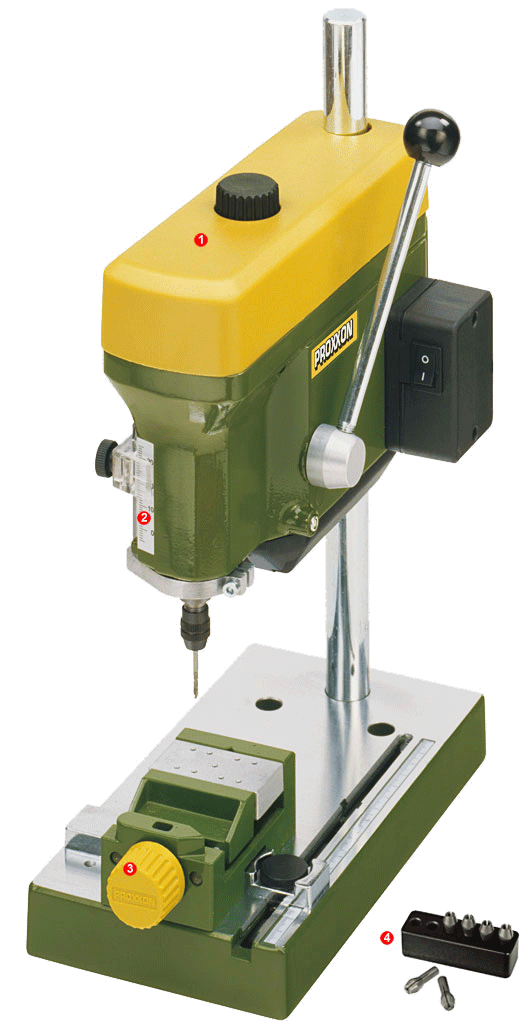

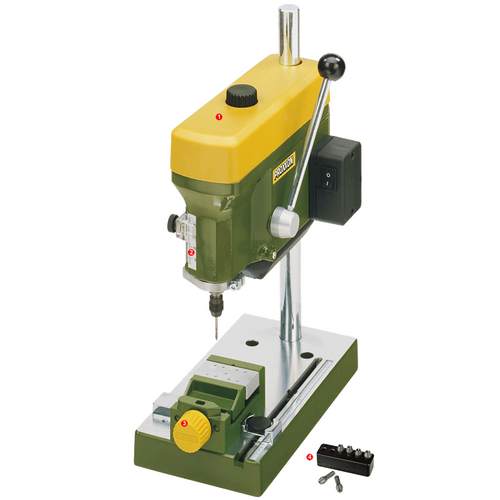

Bench drill machine TBM 220 with vise.

Please Note: This kit includes the vise pictured

Features:

  • Machined worktop of high quality, ribbed die-cast aluminium (220 x 120mm)
  • Adjustable fence with scale
  • Solid, hard-chromed steel column, 340mm high and 20mm diameter
  • Super stable die-cast head with VDE approved 220 - 240V motor makes it very quiet with a long life expectancy
  • Power transmission by aluminium pulleys and flat belt.
  • Three spindle speeds (triple torque at low speeds) and a
  • Feed lever with adjustable depth scale.


Technical data:

  • 220 - 240V. 85W. 50 - 60Hz.
  • Spindle speeds of 1,800, 4,700 and 8,500 rpm.
  • Extremely high rotational accuracy, 30mm feed.
  • Throat depth (column to drill spindle) 140mm.
  • Distance between bottom of collet nut and base of drill is 140mm (max)
  • Six triple slit precision collets for shaft sizes 1.0 - 1.5 - 2.0 - 2.4 - 3.0 - 3.2mm are included.
  • 3/8" thread.
  • Weight 3.3kg.

Below are extra accessories that are available separately for the TBM 220:

A micro chuck which can also be used with the 3.2mm collet for micro drill bit sizes from .35mm - 1.0mm

Chuck available separately 0.5 - 6.0mm to suit



(28128-VISE)

SKU 28128-VISE
Brand Proxxon
Shipping Weight 6.0000kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.050m
Shipping Cubic 0.000125000m3
