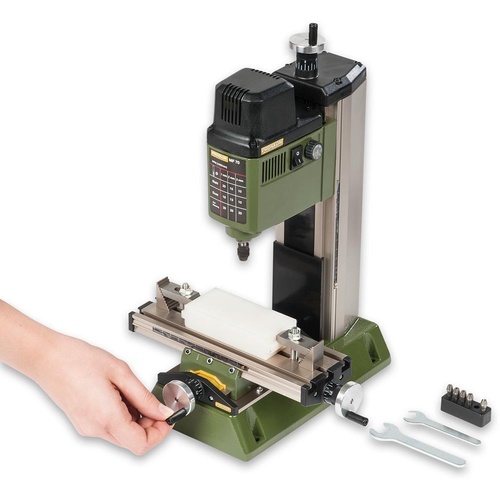

Proxxon Micro Mill MF 70 #27110
Proxxon Micro Mill MF 70 #27110
With a sturdy base of grey cast iron, this mill is appropriate for work with even the smallest of cutters. Both the vertical column and the compound table are made from treated aluminium.
All axes are free of play and have adjustable gibs. The headstock is made from die-cast aluminium, and contains The special 24-pole motor is designed for steady, chatter-free operation even at its highest speed of 20,000rpm, suitable for fine cutters.
As part of the Micromot system, this machine accepts the triple-slit, hardened steel Micromot collets (covering 0.8mm to 3.2mm). The table is fitted with three T-slots (12mm x 6mm x 5mm) compatible with the Micromot T-nuts. An adjustable scale simplifies workpiece positioning.
All handwheels are zero adjustable, with 1 revolution = 1.0mm, 1 divison = 0.05mm.
- six high-concentricity steel collets: 1.0mm, 1.5mm, 2.0mm, 2.4mm, 3.0mm, and 3.2mm, with closure nut
- 2 x step clamps with stepped blocks and screws
- two-axis compound table
- speed: 5,000rpm to 20,000rpm
- maximum power consumption: 100W
- die-cast aluminium head
- footprint: 130mm x 225mm
- total height: 370mm
- X-travel: 134mm
- Y-travel: 46mm
- Z-travel: 80mm
Extra accessories to suit the MF 70 Mill
PROXXON Precision vise, small (suit MF 70, KT 70)
Product Video available below:
https://www.proxxon.com/en/video/27110.mp4
Product Manual (including spare parts list) available below:
(27110)
| SKU | 27110 |
| Barcode # | 4006274271067 |
| Brand | Proxxon |
| Shipping Weight | 9.0000kg |
| Shipping Width | 0.450m |
| Shipping Height | 0.250m |
| Shipping Length | 0.300m |
| Shipping Cubic | 0.033750000m3 |
